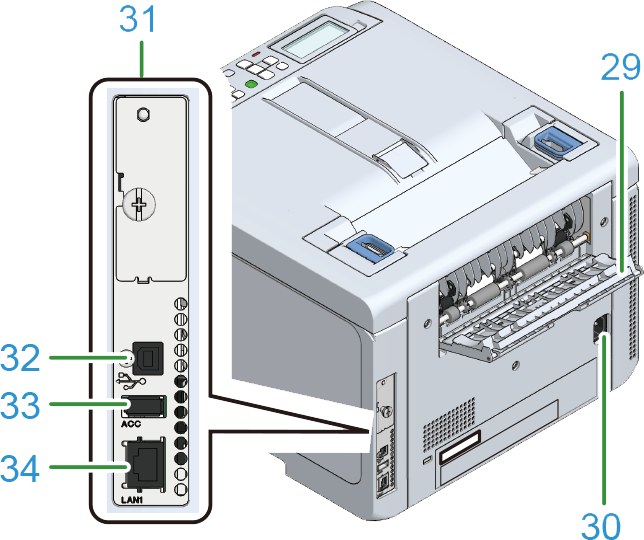

Back
No. | Name | Function |
|---|---|---|
29 | Rear output tray | This is the paper exit when the paper is output with the print side facing up. |
30 | Power connector | This is where the included power cord is plugged in. |
31 | Interface unit | There is a connector to connect to a PC. |
32 | USB interface connector | This is where the USB cable is plugged in when the computer and the main unit is connected with a USB cable. |
33 | Accessory connector | This is a port to which the USB memory is connected. |
34 | Network interface connector (LAN1) | This is where the LAN cable is plugged in when the computer and the main unit is connected via a network. |
