Setting with the short menu (Fn key)
When "Ready To Print" is displayed, press the «Fn» key on the operator panel, and then press any number to display the relevant menu item.
- For the number corresponding to the menu item, refer to "Function Number List".
You can print to check the configuration.
Check that "Ready To Print" appears on the display.
- If the machine is in the power save mode, press «POWER SAVE» to restore.
Press «Fn» on the operator panel.

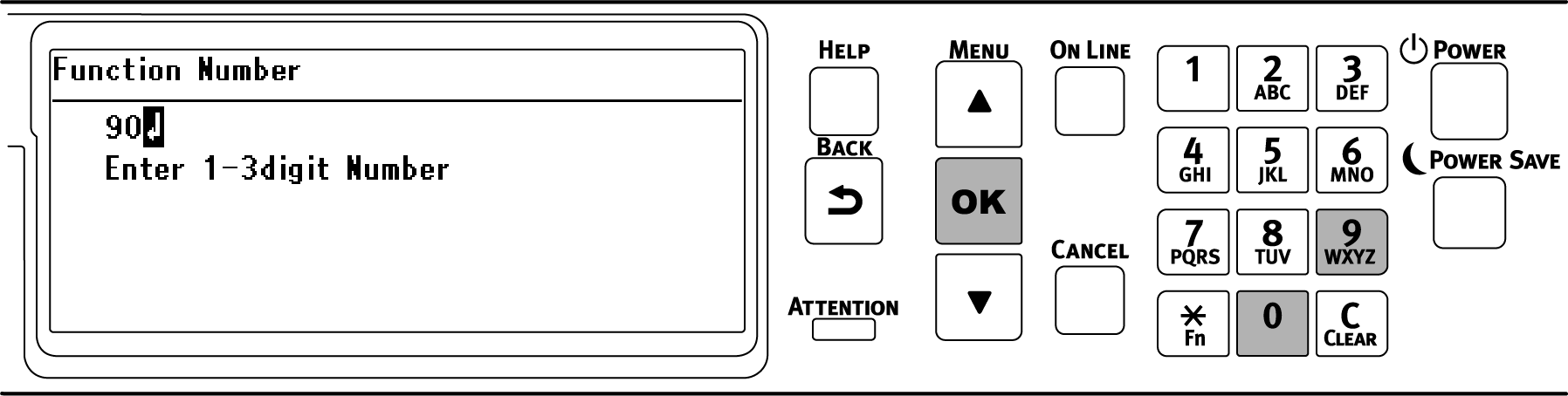

Since it will be a function number screen, input the number of the menu you want to display using the numeric keypad, and press «OK».

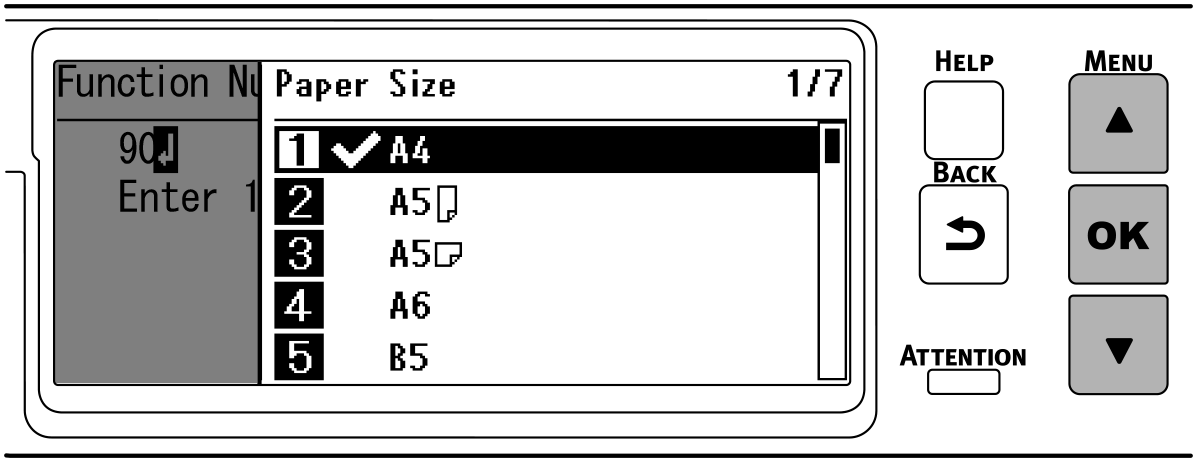

When the menu is displayed, check or change the settings.
Function Number List
Function No. | Corresponding menu item |
|---|---|
1 | Shared Print (Stored Job) |
2 | Private Print (Encrypted Job) |
10 | Media Size (Tray 1) |
11 | X Dimension (Tray 1) |
12 | Y Dimension (Tray 1) |
13 | Media Type (Tray 1) |
14 | Media Weight (Tray 1) |
20 | Media Size (Tray 2) |
21 | X Dimension (Tray 2) |
22 | Y Dimension (Tray 2) |
23 | Media Type (Tray 2) |
24 | Media Weight (Tray 2) |
30 | Media Size (Tray 3) |
31 | X Dimension (Tray 3) |
32 | Y Dimension (Tray 3) |
33 | Media Type (Tray 3) |
34 | Media Weight (Tray 3) |
40 | Media Size (Tray 4) |
41 | X Dimension (Tray 4) |
42 | Y Dimension (Tray 4) |
43 | Media Type (Tray 4) |
44 | Media Weight (Tray 4) |
80 | Paper Tray |
90 | Media Size (MP tray) |
91 | X Dimension (MP tray) |
92 | Y Dimension (MP tray) |
93 | Media Type (MP tray) |
94 | Media Weight (MP tray) |
95 | Tray Usage (MP tray) |
100 | Print Information (Menu Map (Configurations)) |
101 | Print Information (Network) |
102 | Print Information (Printer Usage Report) |
103 | Print Information (Error Log) |
200 | Power Save Time |
201 | Sleep Time |
202 | Auto Power Off Time |
210 | Error Report |
220 | Print Position Adjust (MP tray) |
221 | Print Position Adjust (Tray 1) |
222 | Print Position Adjust (Tray 2) |
223 | Print Position Adjust (Tray 3) |
224 | Print Position Adjust (Tray 4) |
230 | Paper Black Setting |
231 | Paper Color Setting |
232 | Trans. Black Setting |
233 | Trans. Color Setting |
234 | SMR Setting |
235 | BG Setting |
236 | Drum Cleaning |
237 | Hex Dump |
300 | Adjust Density |
301 | Adjust Registration |
302 | Print Color Tuning Pattern |
310 | Cyan Density |
311 | Magenta Density |
312 | Yellow Density |
313 | Black Density |
- If the function number of an optional part that is not installed is specified, [Invalid Number] is displayed.
- For a list of menu items, see "Menu list".
