Replacing the belt unit

For the replacement cycle, see "Belt unit".

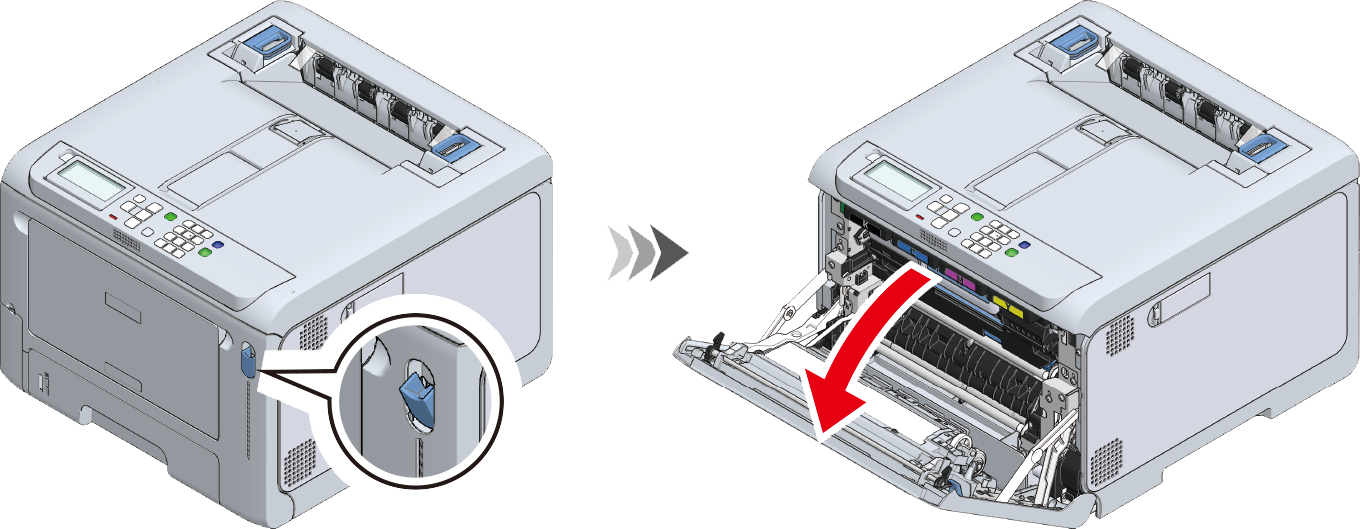

1. Pull the front cover open lever (blue) to open the front cover.

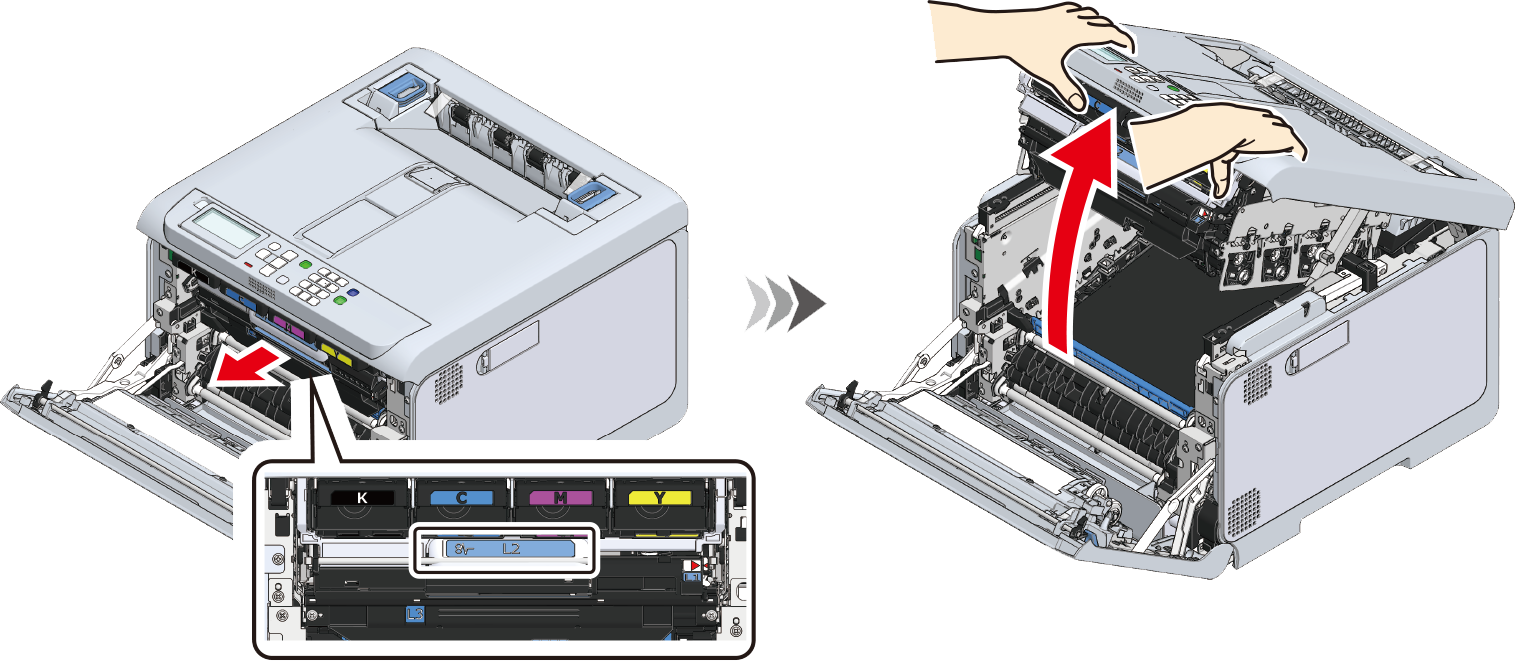

2. Pull the L2 lever and lift the output tray to the stop position.

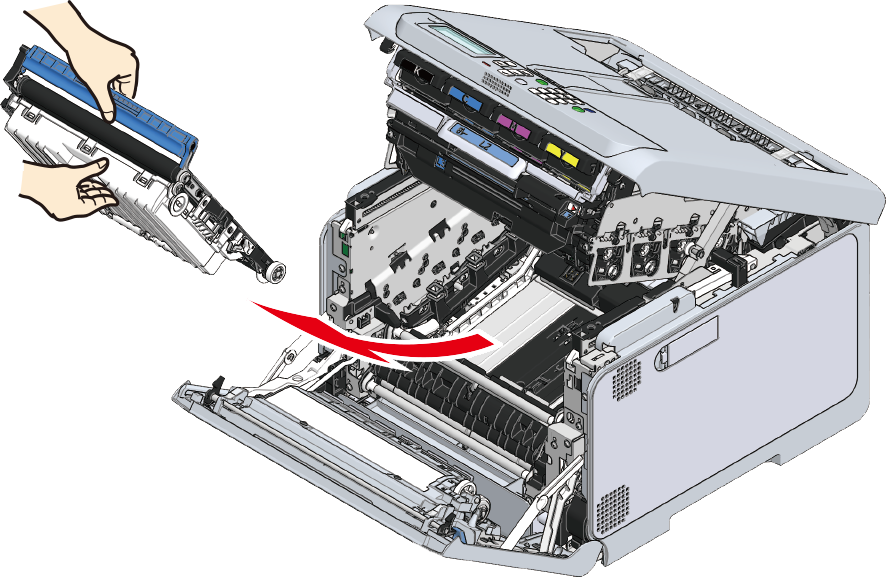

3. Remove the belt unit by holding its blue handle.

   	Doing so may cause burns.
   Do not touch the fuser unit because it is hot.



   • Because image drums (green parts) can easily get damaged, handle with adequate care.
   • Do not expose the image drum to direct sunlight or strong light (About 1,500 lux or above). Do not leave it uncovered for more than 5 minutes even under room lighting.

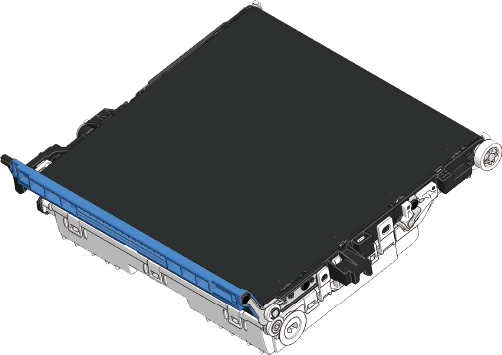

4. Take the new belt unit out of its box.



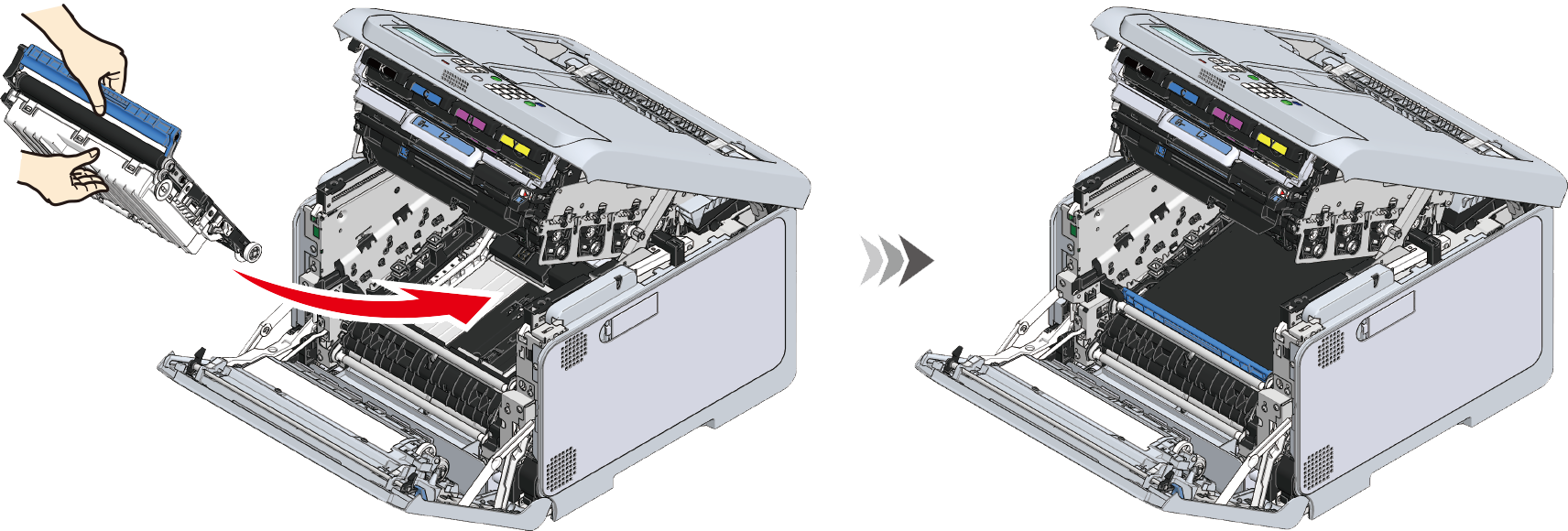

5. Install the belt unit in this machine by holding its blue handle.

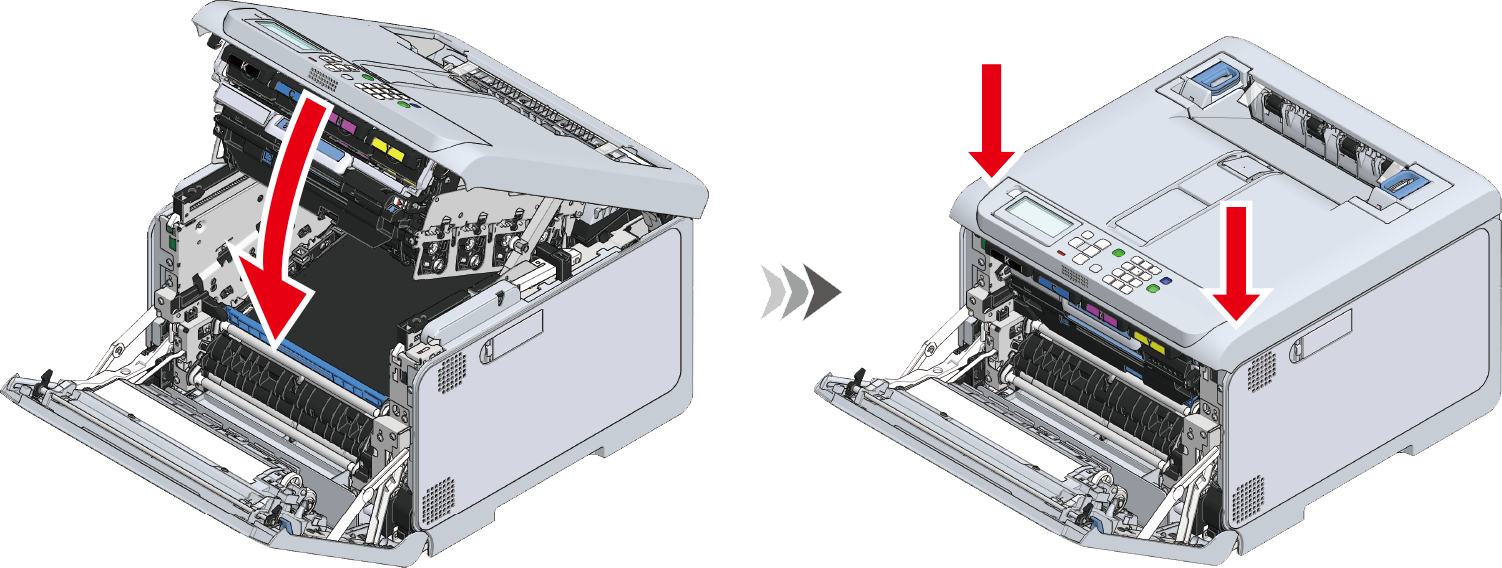

6. Close the output tray, and push both sides down firmly from top.

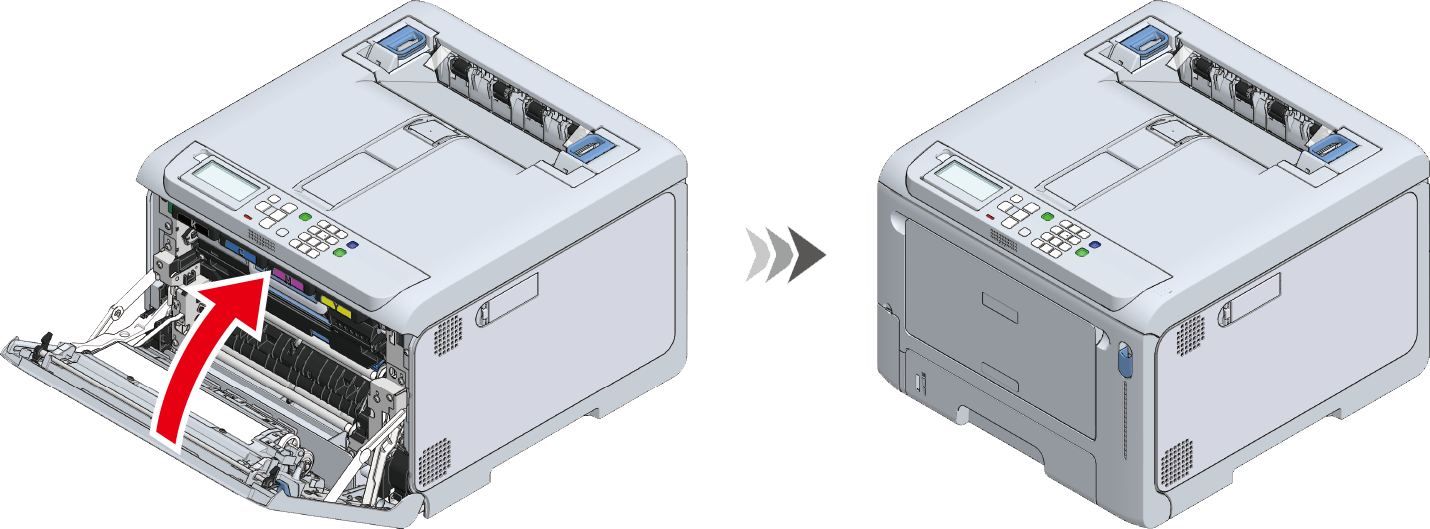

7. Close the front cover firmly with both hands.
