Replacing the toner cartridge (C/M/Y)
This section takes the toner cartridge (M) as an example. The toner cartridge (C/Y) can be replaced by the same procedure.
- To replace the black toner cartridge (K), please refer to "Replacing the black(K) toner cartridge and the waste toner box".

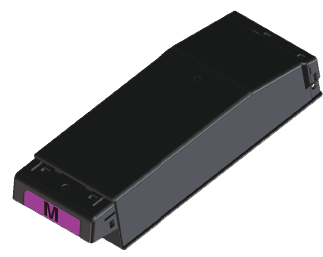

- Remove the new toner cartridge of the color to be replaced from its packing case.

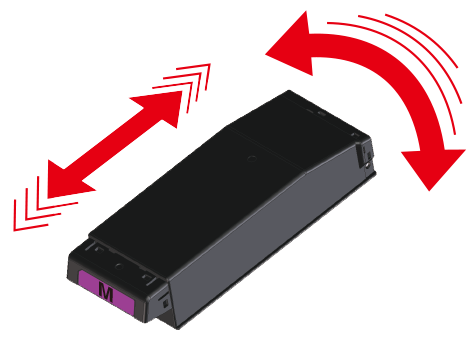

Shake the new toner cartridge both horizontally and vertically for several times.

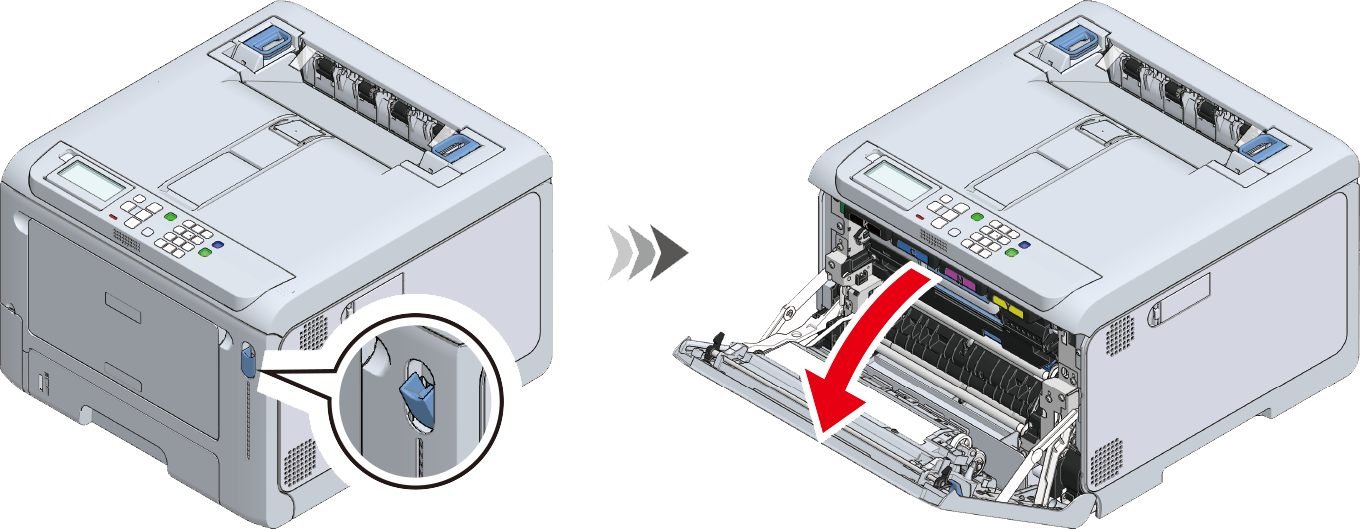

Pull the front cover open lever (blue) to open the front cover.

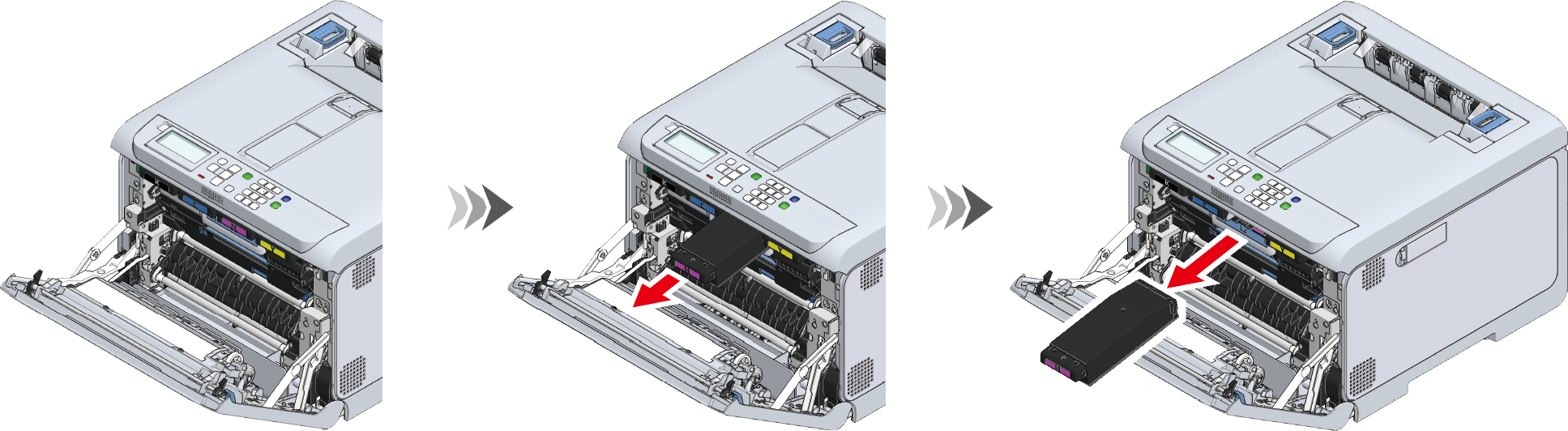

Remove the toner cartridge of the color to be replaced from the machine.

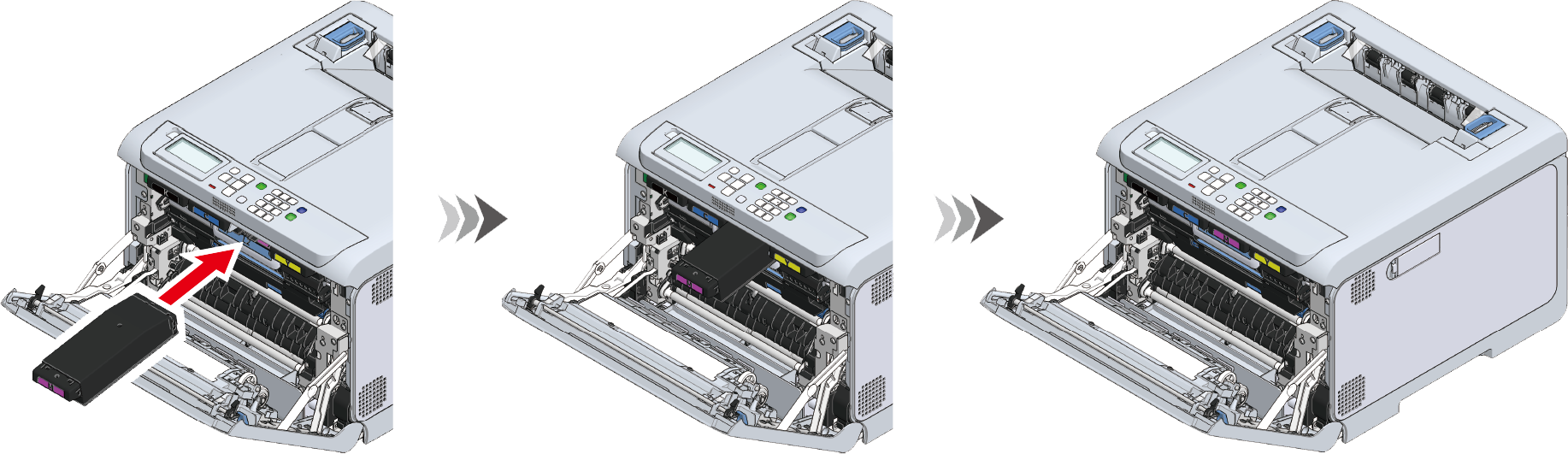

Insert the new toner cartridge into the machine.

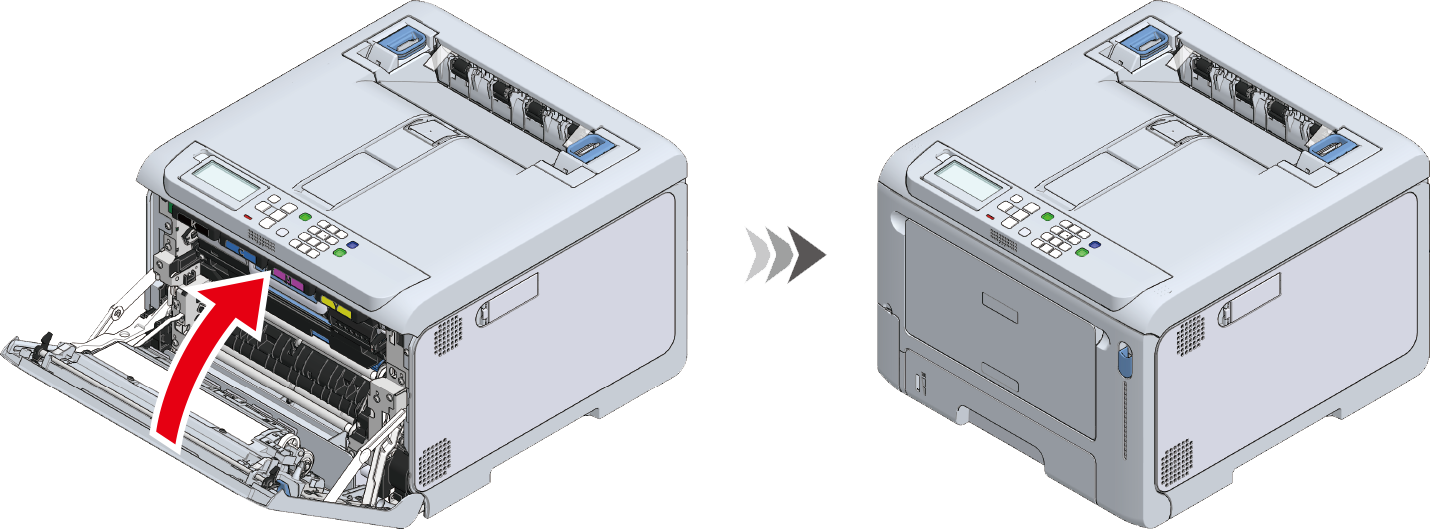

- Close the front cover firmly with your both hands.
- Please recycle the used toner cartridge.
