Windows PCL printer driver

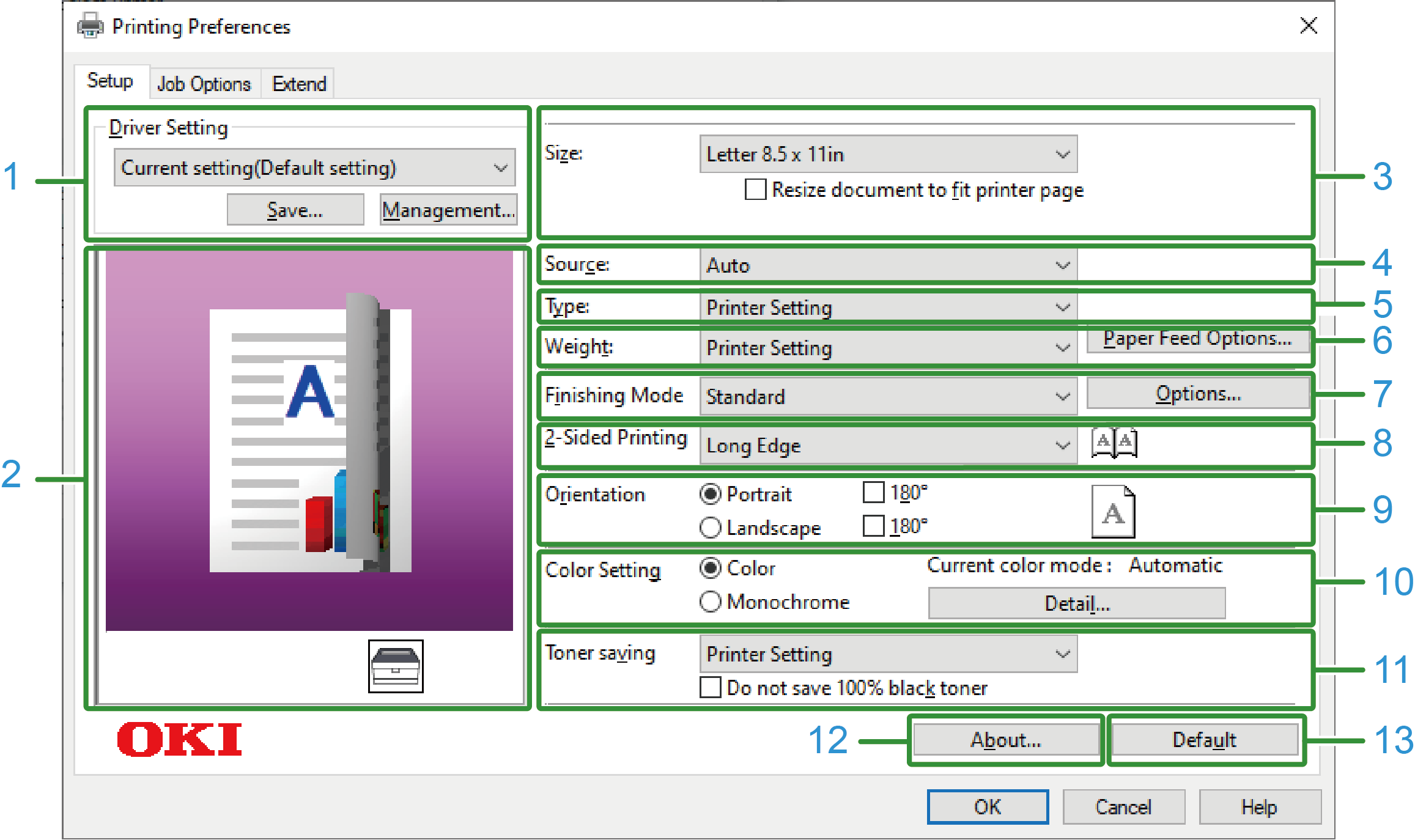

[Setup] tab
No. | Item | Description |
|---|---|---|
1 | Driver settings | Save the settings. |
2 | Layout image | Displays a sample image of the print layout. |
3 | Size | Sets the media size. |
4 | Source | Sets the paper source. |
5 | Type | Sets the media type. |
6 | Weight | Sets the media weight. |
7 | Finishing Mode | Sets multicast printing, booklet printing, poster printing, etc. |
8 | 2-Sided Printing | Sets the duplex printing. |
9 | Orientation | Sets the printing orientation. |
10 | Color Setting | Switches between color printing and mono printing. |
11 | Toner saving | Decreases the print density to reduce the amount of toner to be used. |
12 | About | Displays the version of the printer driver. |
13 | Default | Restores the settings of each item in the tab to the initial values. |

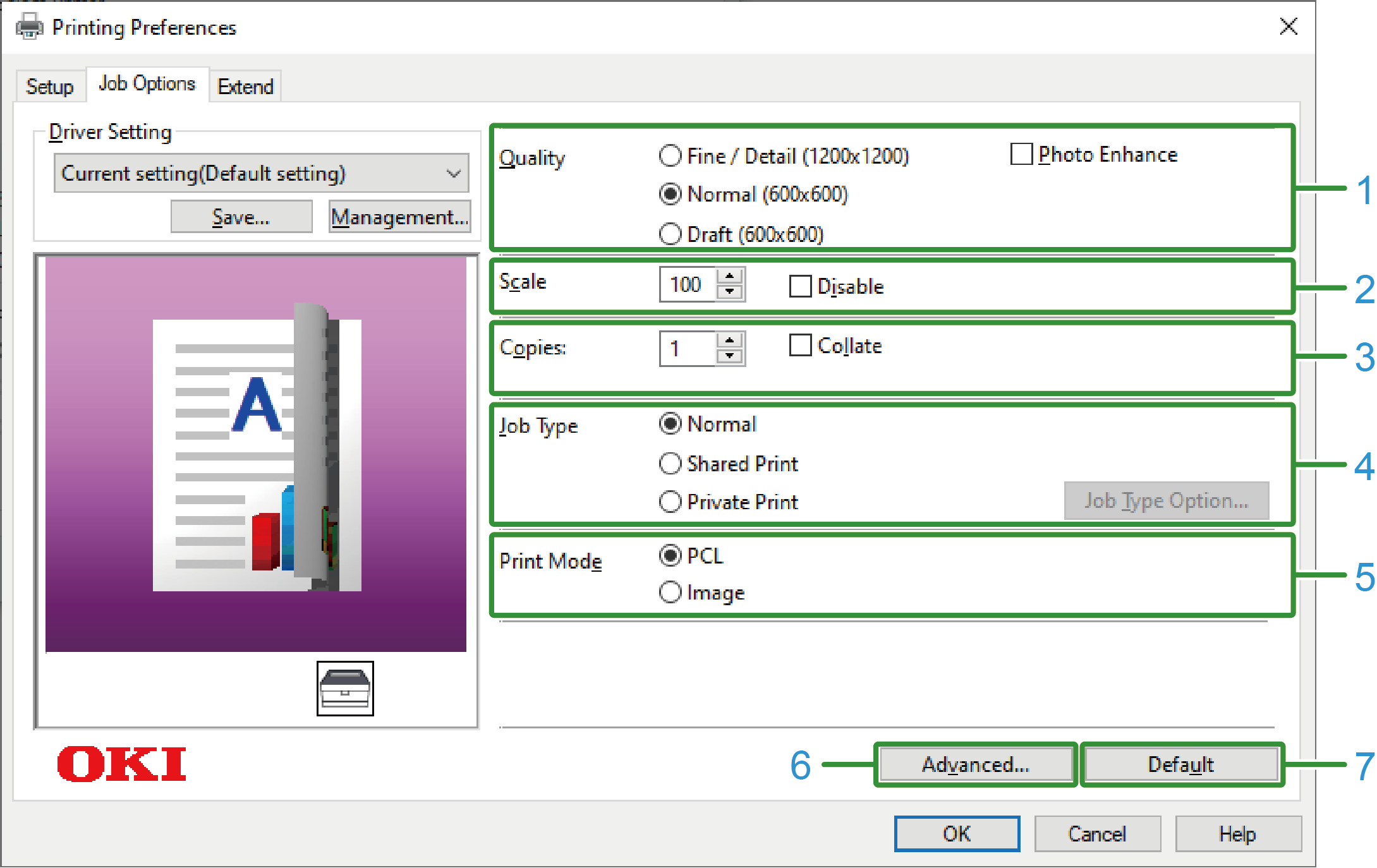

[Job Options] tab
No. | Item | Description |
|---|---|---|
1 | Quality | Specifies the print resolution. |
2 | Scale | Sets the enlargement/reduction of printing. |
3 | Copies | Specifies the number of copies. |
4 | Job type | Sets the type of printing. |
5 | Print mode | Sets whether the print data sent to the printer is in PCL format or as an image. |
6 | Advanced | Make other printing settings. |
7 | Default | Restores the settings of each item in the tab to the initial values. |

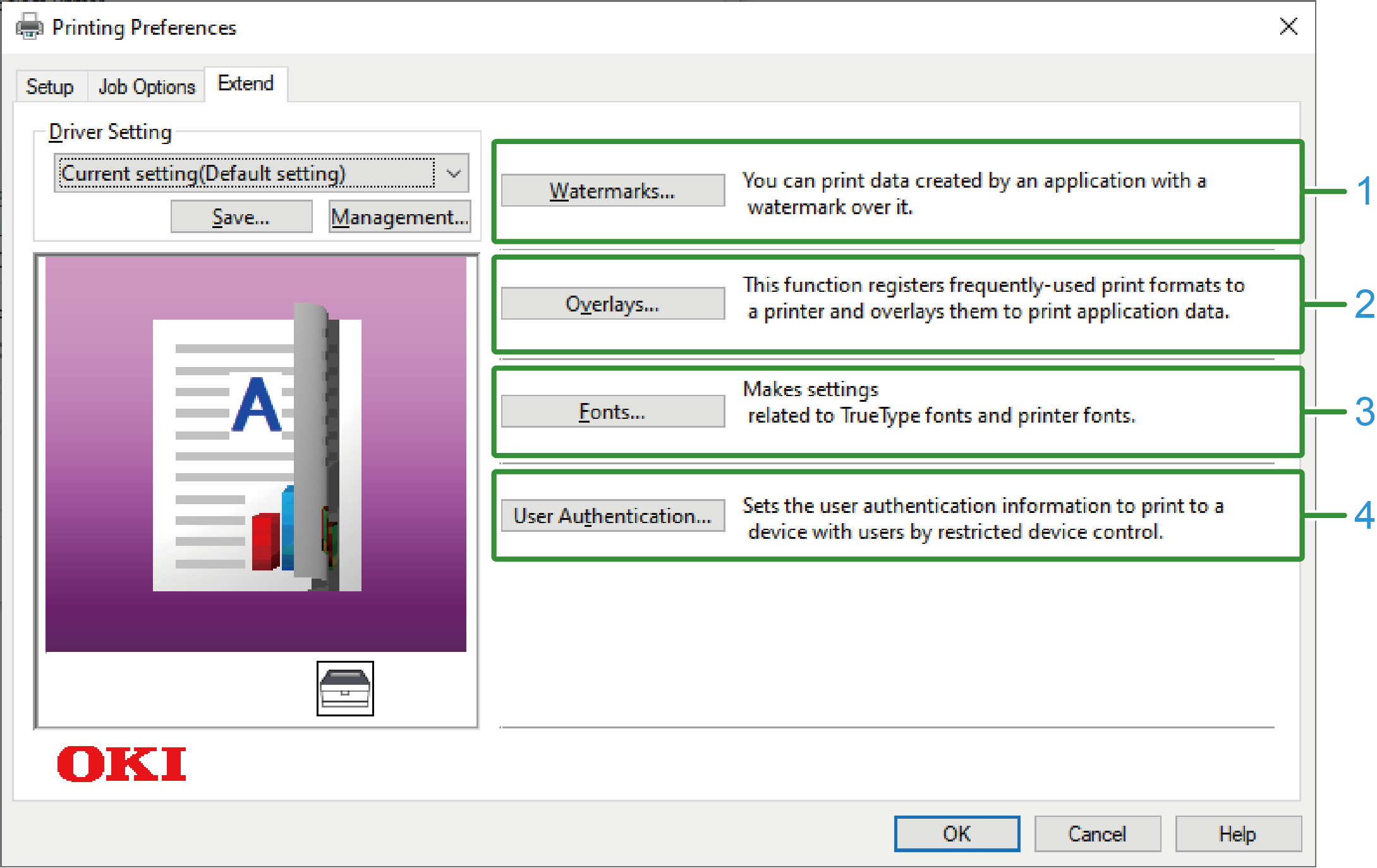

[Extend] tab
No. | Item | Description |
|---|---|---|
1 | Watermarks | Set for printing with a text or stamp watermark. |
2 | Overlays | Set for printing with an overlapping print format registered in the printer beforehand. |
3 | Fonts | Sets the TrueType font and printer font. |
4 | User authentication | Sets the user authentication. |
