Loading paper in Tray 1

For the paper that can be used, please see "Applicable paper","Paper applicable to each tray".

  • You can load the A5-sized paper in either portrait or landscape.


  1. Pull out the paper cassette.

    • If you pull out the paper cassette with the power on, "Change tray settings?" may appear on the display. This message will disappear automatically in 10 seconds after the paper cassette is returned to the main unit.
      If you have changed the paper, press the «OK» button and change the settings of paper size, media type and media weight accordingly.
    • Be cautious for the orientation of paper that can be loaded in either portrait or landscape, like A5 size.

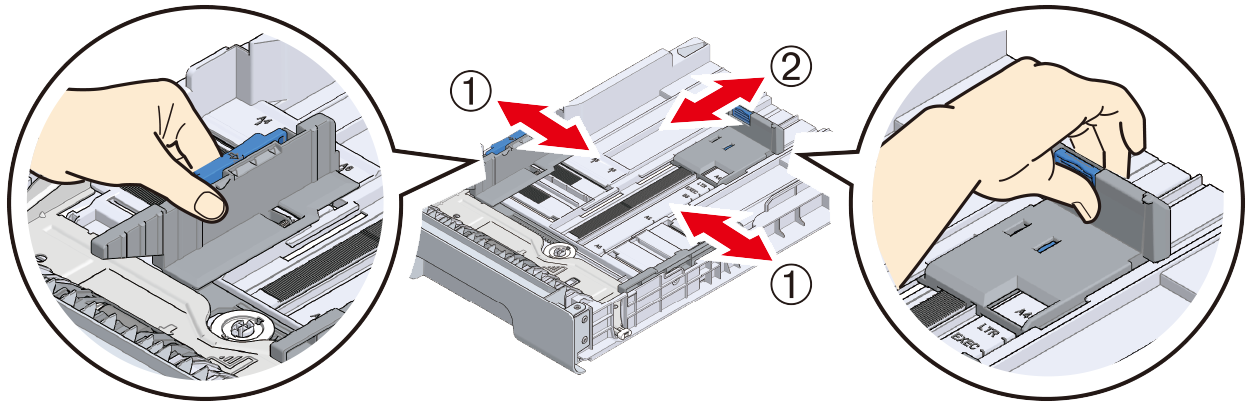

  2. Slide the paper guide and the blue part of the paper stopper to fit the size of the paper to be loaded.

  3. Shuffle the paper well. Align edges of the paper horizontally.

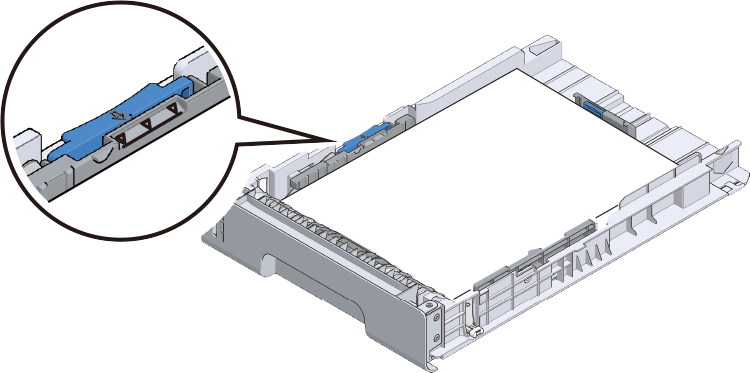

  4. Load the paper with the printing side down, and press it down from top.

    • Do not exceed the ▽ mark on the paper guide when loading paper.

  5. Return the paper cassette to this machine.

    • If the paper cassette is returned to the main unit forcefully, the paper stopper may slide.

  6. Proceed to "Setting paper information on the operator panel".
