Connecting the LAN cable

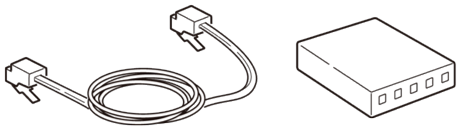

  1. Prepare a LAN cable (category 5e or better, twisted pair, straight) and a hub.

  2. Power off this machine.

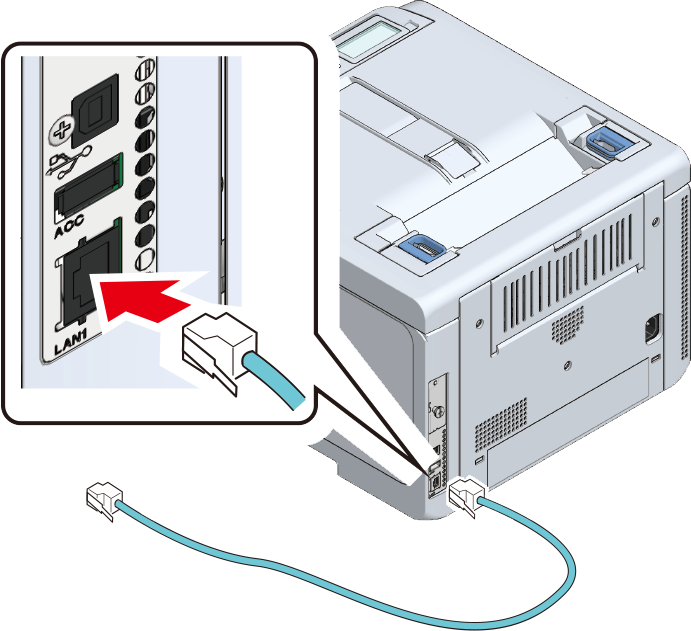

  3. Plug one end of the LAN cable into the network interface connector (LAN1) of this machine.

  4. Plug the other end of LAN cable into the hub.

    Then, set the network information like the IP address on this machine.

    Setting the IP address, etc.
