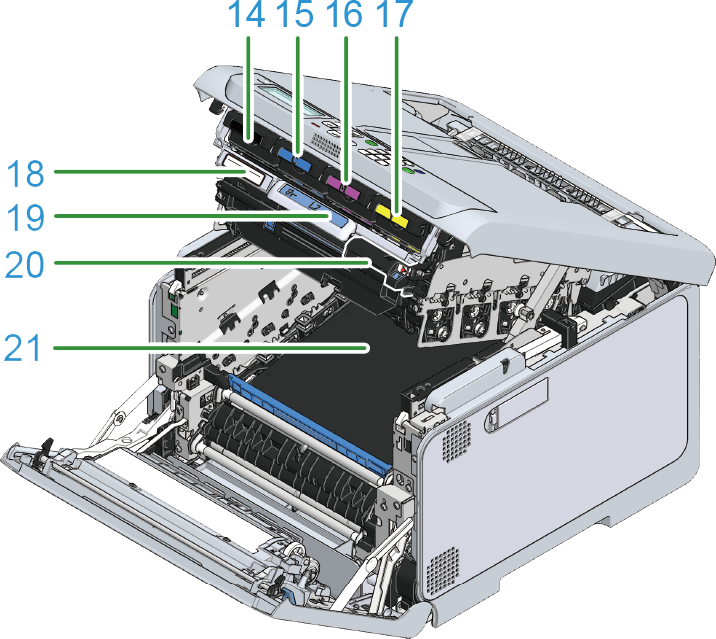

Inside the main unit
No. | Name | Function |
|---|---|---|
14 | Toner cartridge black (K: Black) | The toner cartridge contains toner (powder ink) for printing. The toner cartridge is a consumable. |
15 | Toner cartridge (C: Cyan) | |
16 | Toner cartridge (M: Magenta) | |
17 | Toner cartridge (Y: Yellow) | |
18 | Serial number | The machine-specific number. |
19 | Lever L2 | The lever used to lift up the cover of the output tray. |
20 | Lever L1 | The lever uses to replace the image drum. |
21 | Belt unit | The unit to convey the paper. |
22 | Handle L3 | The handle used to pull out the image drum basket. |
23 | Image drum (K: Black) | The image drum is a unit to create an image on the paper by using toner. The image drum is a consumable. |
24 | Image drum (C: Cyan) | |
25 | Image drum (M: Magenta) | |
26 | Image drum (Y: Yellow) | |
27 | Image drum basket | Holds the image drum. |
28 | LED head (x 4) | Writes an image onto the image drum using light. |
