Printing data from a USB memory

You can connect a USB memory to this machine, and print the data saved on it.

  • We do not guarantee the use of all USB memory products (The USB memory with security function is not supported).
  • Not compatible with USB 3.0.
  • Not compatible with the USB Hub or external USB-HDD.
  • Not compatible with encrypted PDF.

  • Compatible with FAT12, FAT16 and FAT32.
  • Compatible with PDF (v1.7), JPEG, TIFF (v6 baseline), PRN (PS, PCL), and OBC.
  • For printing files in the OBC format, refer to "Printing QR Code or barcode".
  • Create data in ASCII form.
  • Compatible with a maximum of 32GB USB memory.
  • Among all the files saved in the USB memory with the compatible file format, a maximum of 100 files are displayed in the file list.
    • The file list will not be displayed correctly if more than 100 files are stored on the USB memory.
    • Files may not be read correctly from the USB memory with a directory structure of 20 or more layers.
    • Files with a path length of over 240 characters may not be read correctly.
  • Only one file in the USB memory can be printed at a time.

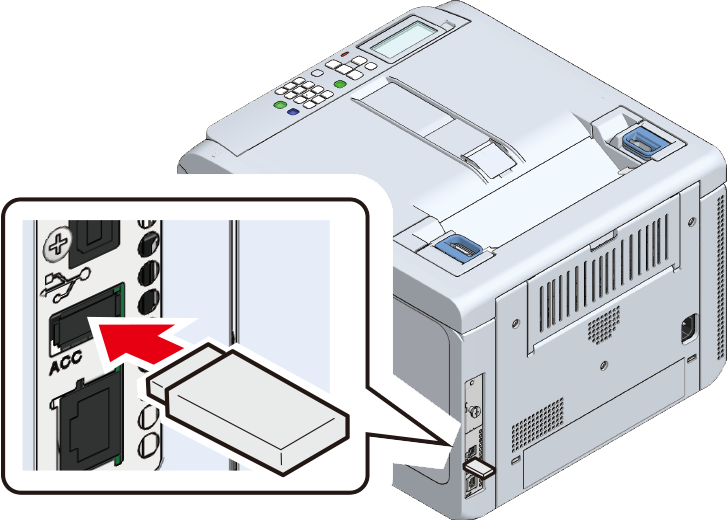

  1. Insert the USB memory to the accessory connector (ACC) of this machine.

  2. Check that [Select File] is displayed, and press the scroll button ▲ or ▼ to select the file to print, and press «OK».
  3. To set the number of printing sheets and other items, press ▼ to select [Print Setup] and press «OK».
    After completing the settings, press «BACK» to return to the screen of the file you want to print.
  4. Press ▼ or ▼ to select [Execute], and press «OK».
    The screen returns to the file list screen once the printing is completed. To continue printing, select the file from [Select File] and repeat Steps 4 and 5.
    To finish printing, press «ONLINE».
  5. You can remove the USB memory when a message appears indicating that you can safely remove it.


Canceling the printing

To cancel the printing from the USB memory, press «CANCEL» on the operator panel.

Please see "Canceling the printing" for details.

  • The pages ready for printing in this machine will be printed as they are.
