Connecting via USB

Connect this machine and a PC with a USB cable to print.

1. Prepare a USB 2.0 cable.



   • Not compatible with USB 3.0.
   • The connector shape on the machine side is of type B.





   • To connect in the USB 2.0 hi-speed mode, use a USB cable compliant with USB 2.0 hi-speed specifications.
2. Power off this machine.

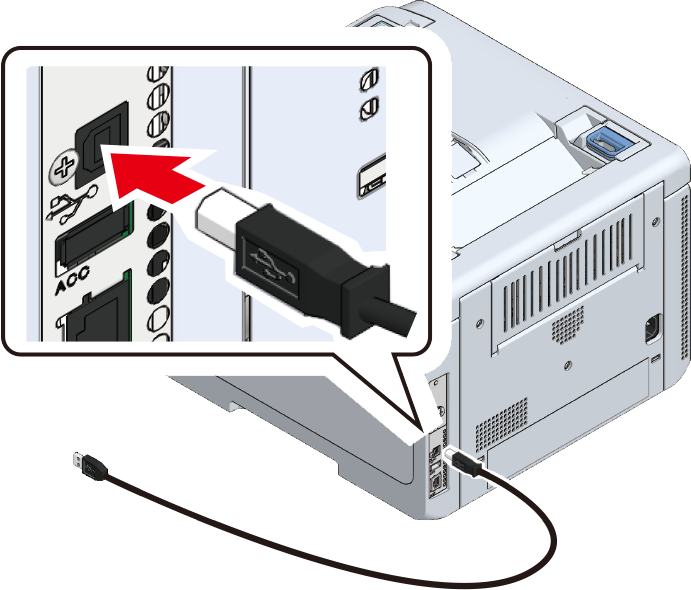

3. Plug one end of the USB cable into the USB interface connector of this machine.



   • Do not insert the USB cable into the network interface connector. Doing so may cause a malfunction.

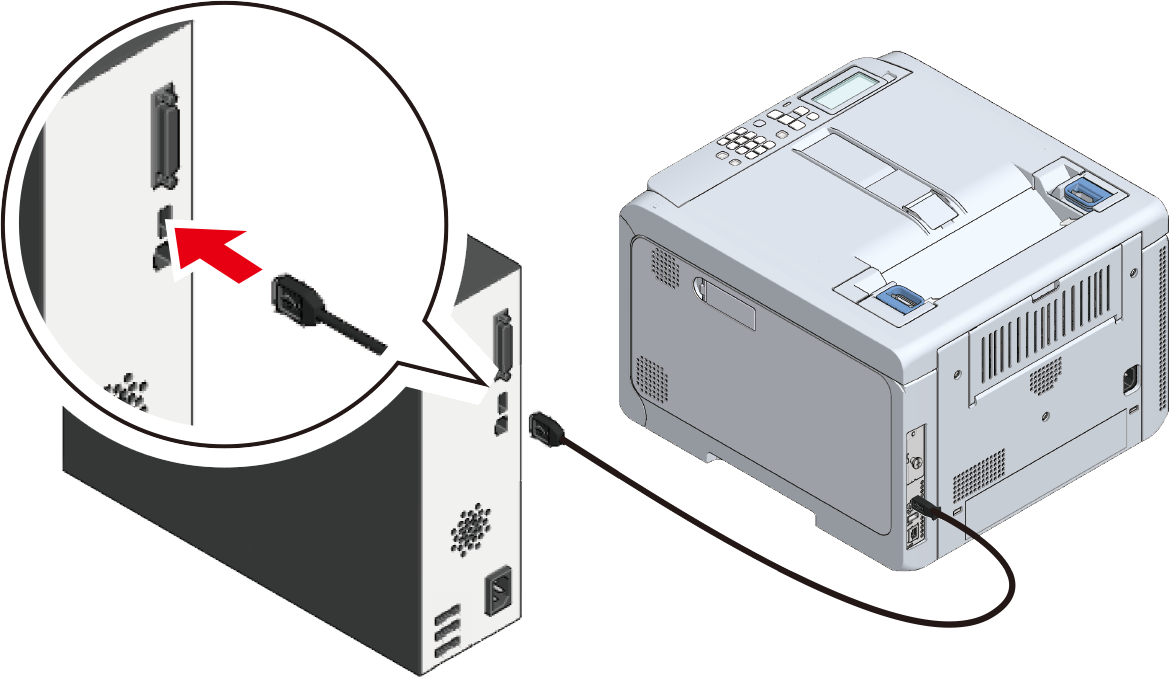

4. Plug the other end of the USB cable into the USB interface connector of the PC.



   Proceed to "Installing software on a PC".
