Starting the Configuration Tool
Click [Start], and select [Okidata] or [OKI] - [Configuration Tool].

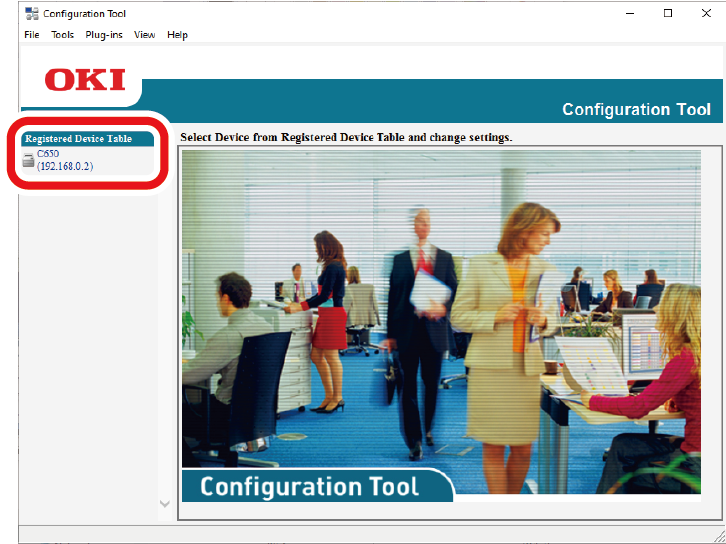

Select this machine from [Registered Device Table].
