Unpacking

Doing so may cause injury.

This machine weighs approx. 30 kg, so be sure to have it lifted by at least 2 personals.

  • Be sure to use the consumables/maintenance items supplied with this machine first. If you install the consumables/maintenance items other than those supplied first, the lifespan may not be displayed correctly or the accessories may not be usable later.
  • Because image drums (green parts) can easily get damaged, handle with adequate care.
  • Do not expose the image drum to direct sunlight or strong light exceeding approx. 1,500 lux. Do not leave it for more than 5 minutes even under room lighting.
  • Do not expose the removed fuser unit to direct sunlight or strong light exceeding approx. 1,500 lux. Do not leave it uncovered for more than 5 minutes even under room lighting.
  • The packing box and buffer material are required when shipping this machine. Do not discard them, but store them safely.

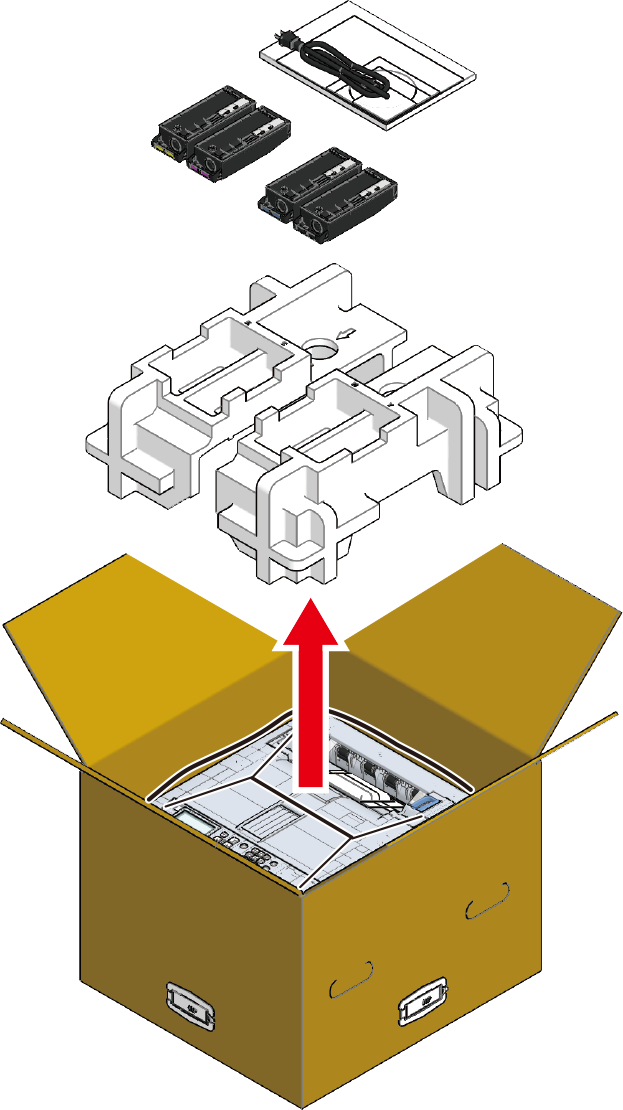

  1. Open the packing box and take out the accessories and buffer material.

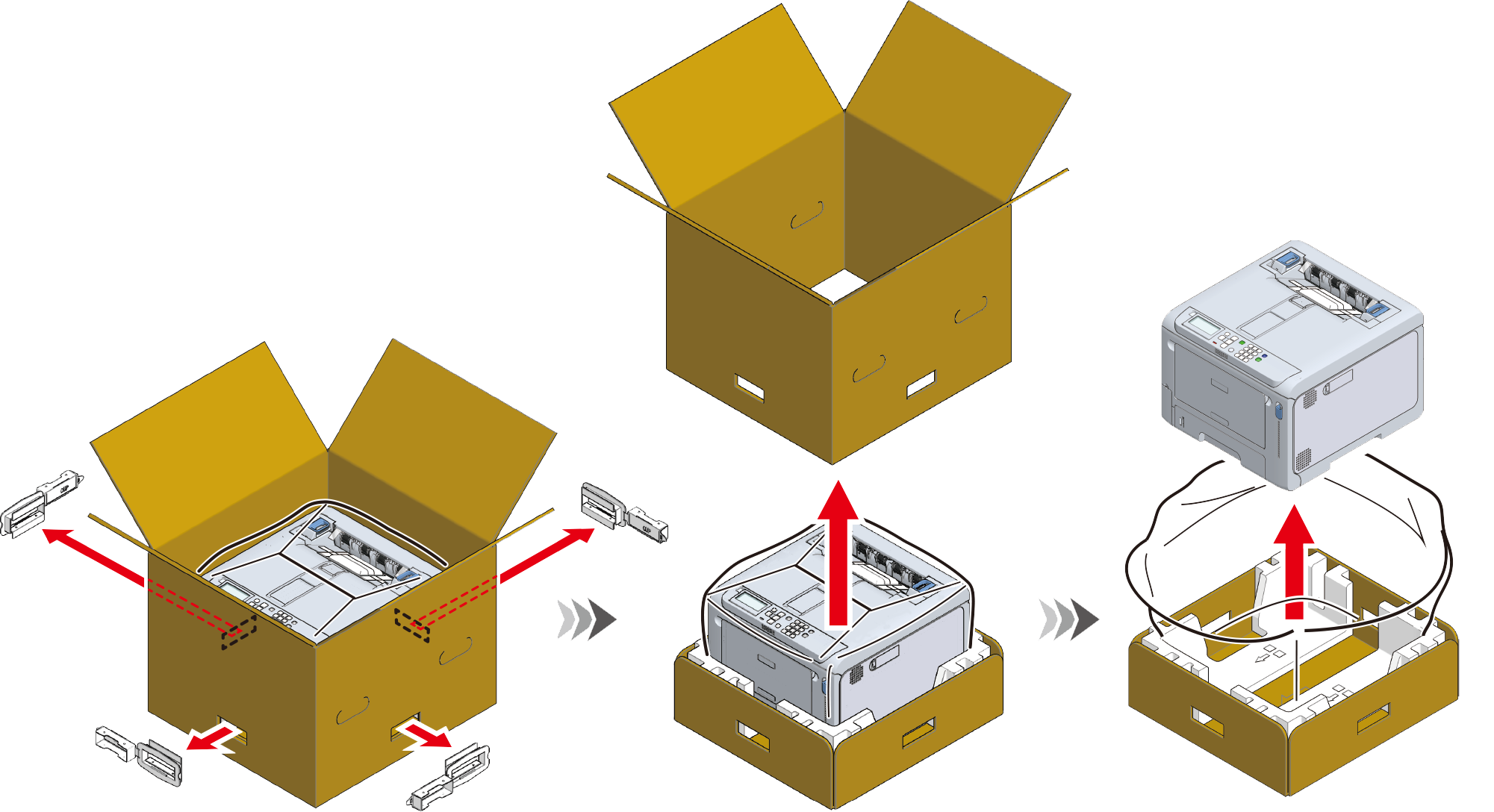

  2. Remove the packing case and take out this machine from the plastic bag.

  3. Lift this machine and place it at the installation site.

  4. Remove the drying agent on the top of this machine.
