Name and function of each screen

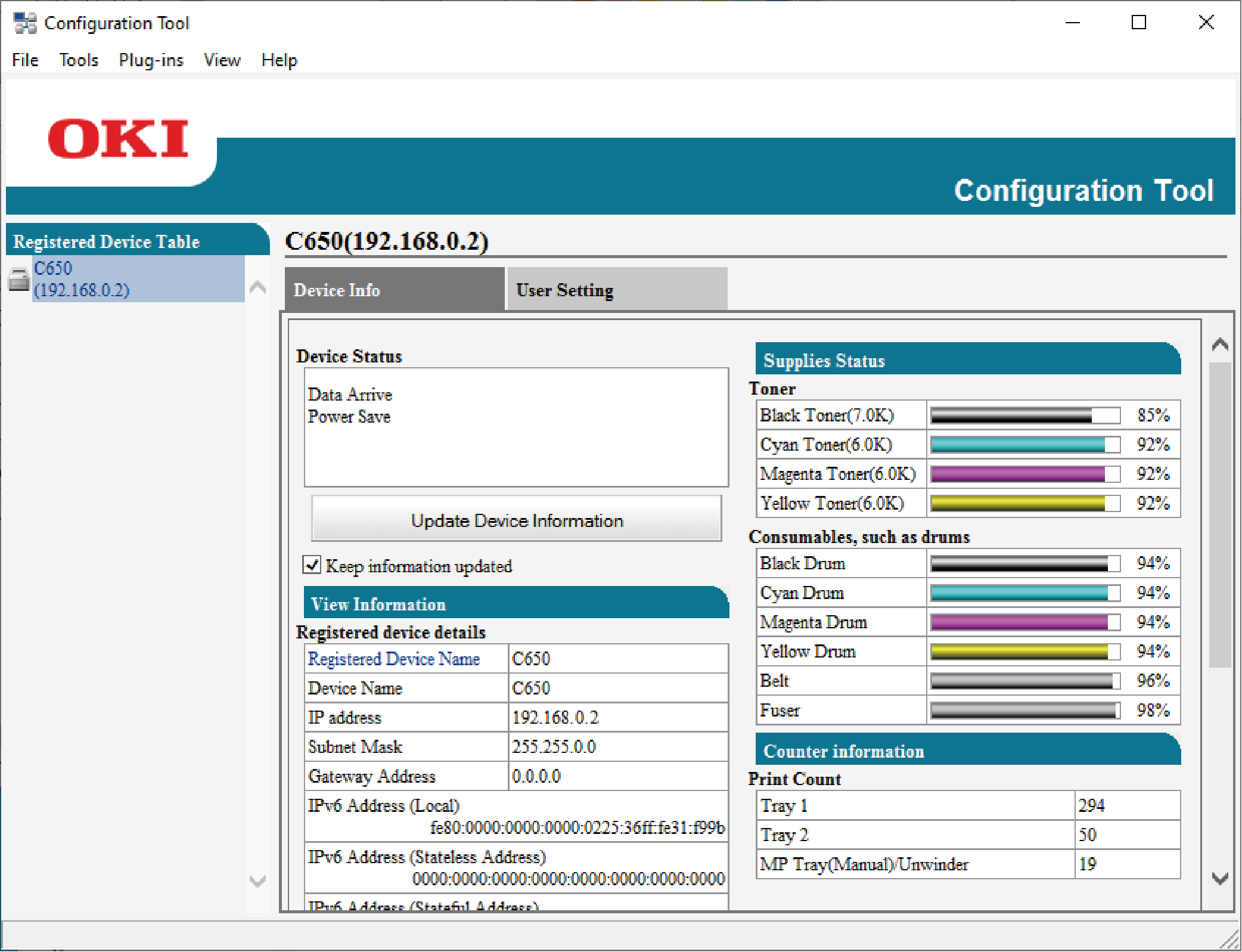

[Device Info] tab
Displays the information about the device.

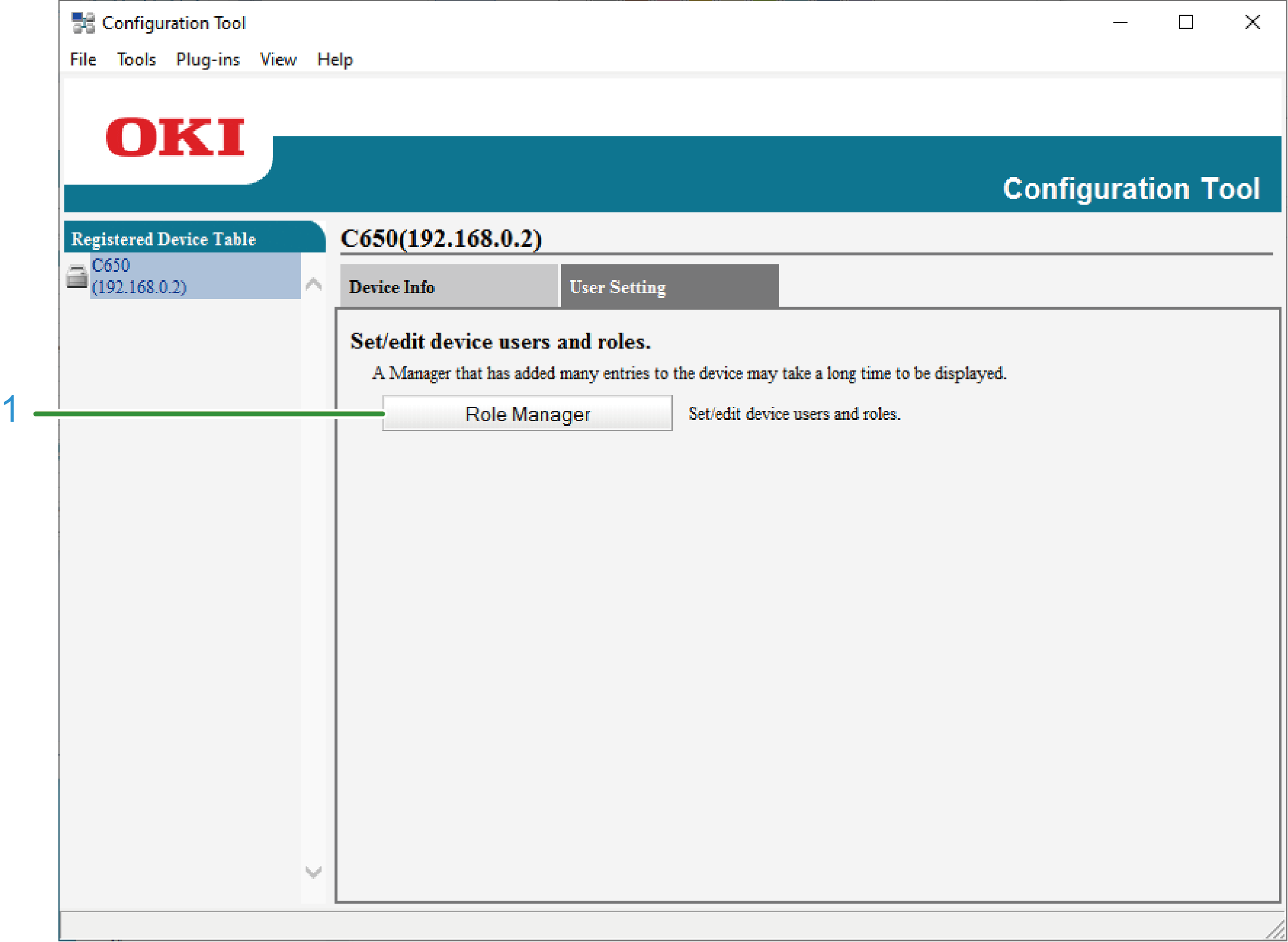

[User Setting] tab
Sets the user, role and so on.
Item | Description | |
|---|---|---|
1 | Role management | Registers/Edits the user and role |

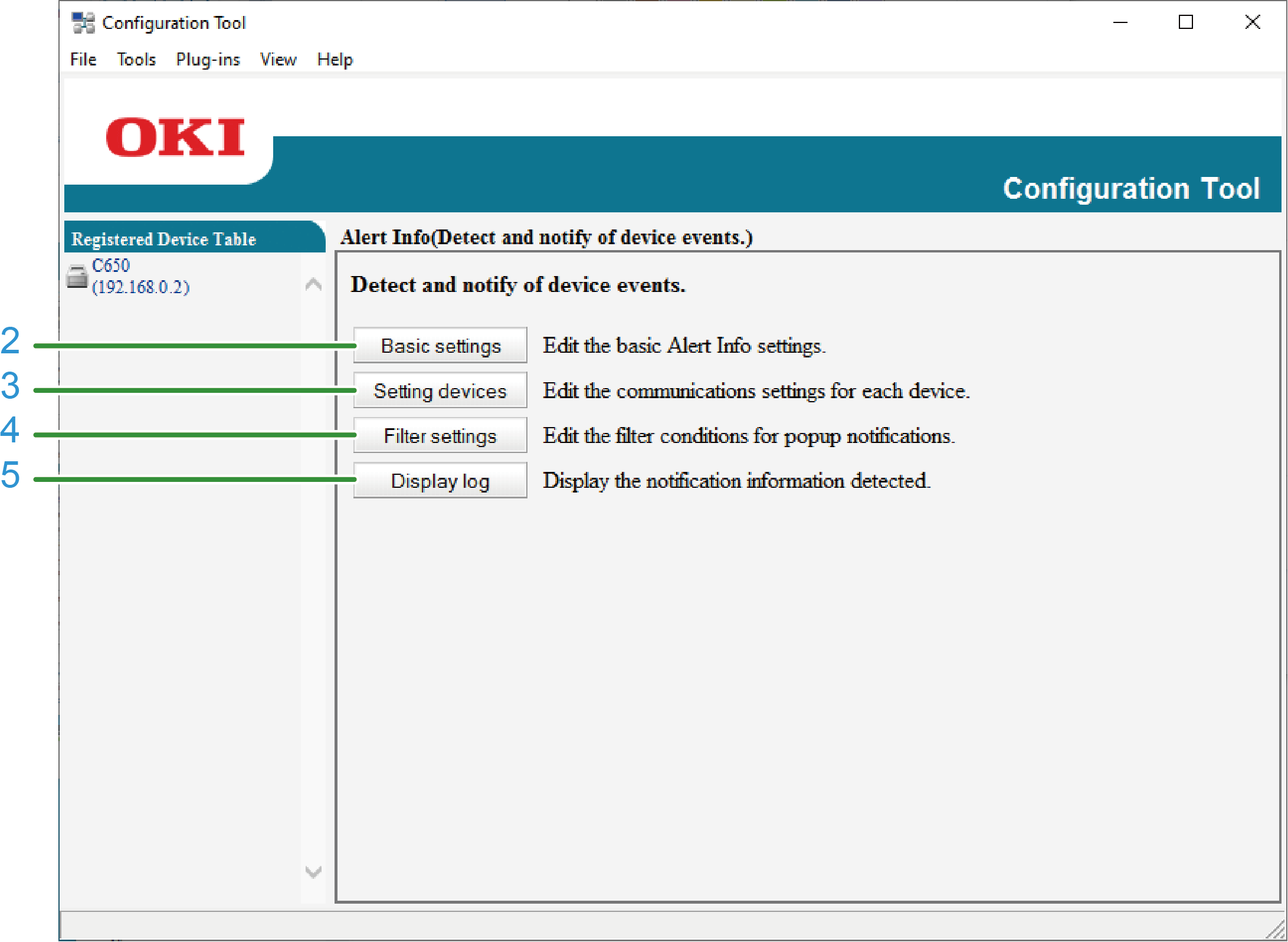

[Alert Info] plug-in
Detects and notifies the event such as the end of printing.
Item | Description | |
|---|---|---|
2 | Basic settings | Configures basic settings such as the notification method and detection interval |
| 3 | Setting devices | Sets the type and presence of the event notified by each device |
| 4 | Filter settings | Sets filter conditions for pop-up notifications |
| 5 | Display log | Displays detected notification information |

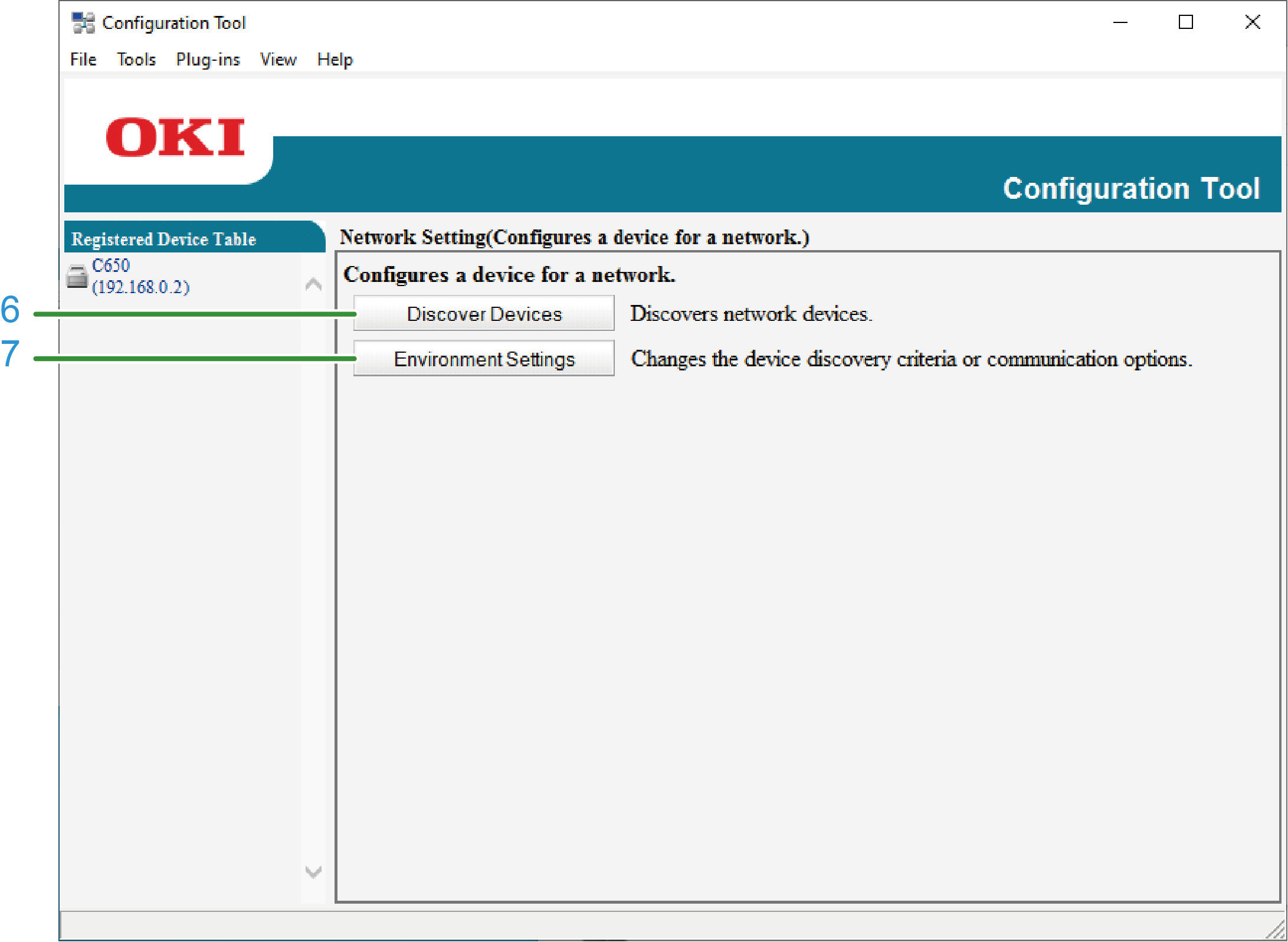

[Network Setting] plug-in
Sets the network information.
Item | Description | |
|---|---|---|
6 | Discover Devices | Searches for network devices. |
| 7 | Environment Settings | Changes the device detection criteria and communication options. |
[Storage Manager] plug-in
Registers and edits files to be downloaded to the device.
