How to use levers L1 and L2

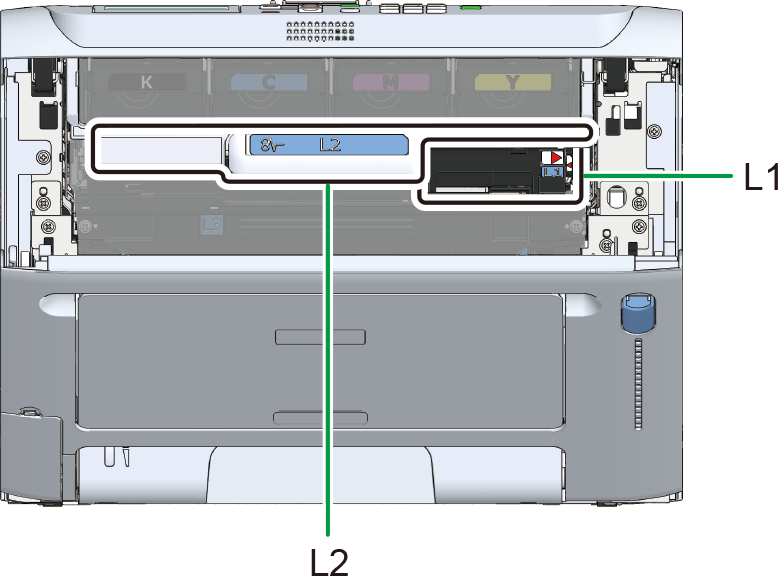

When the front cover is open, you will find the L1 lever and the L2 lever. This section describe how to use these levers.
Lever L1
Used to replace the image drum and to clean the LED head.

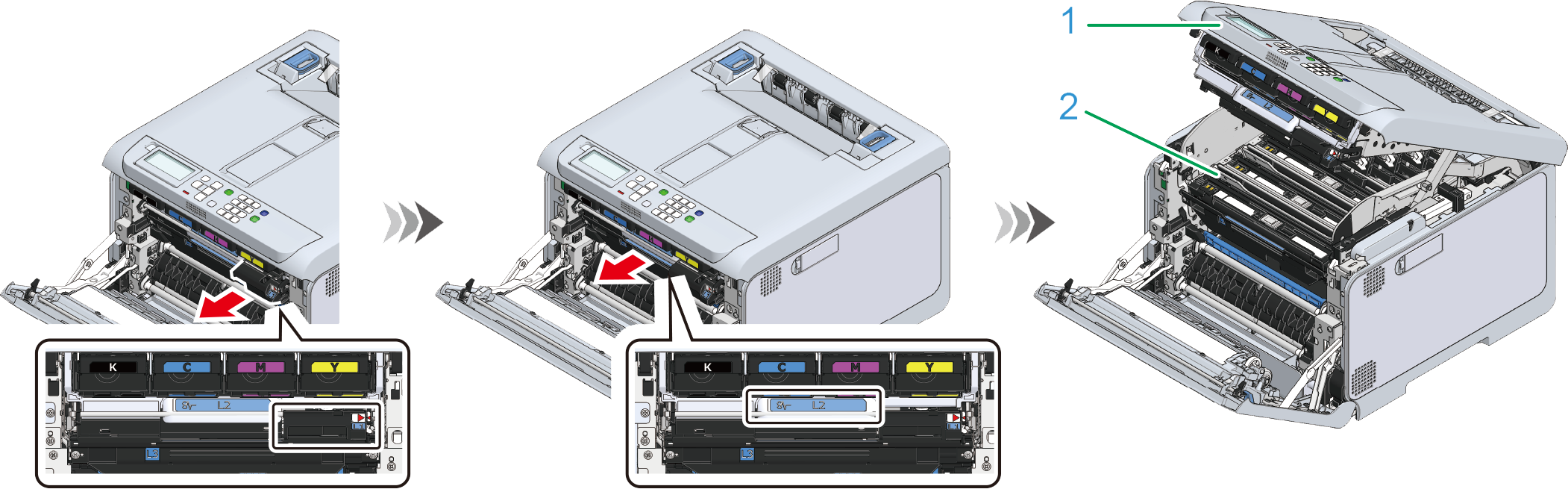

After opening the front cover, operate the L1 lever first and then the L2 lever.
After the operation, only the output tray is raised.
No. | Name |
|---|---|
| 1 | Output tray |
| 2 | Image drum basket |
When closing, close the output tray first. Then, press the L1 lever, and close the front cover with your both hands firmly.
Lever L2
Used to replace the belt unit and to remove the jammed paper.

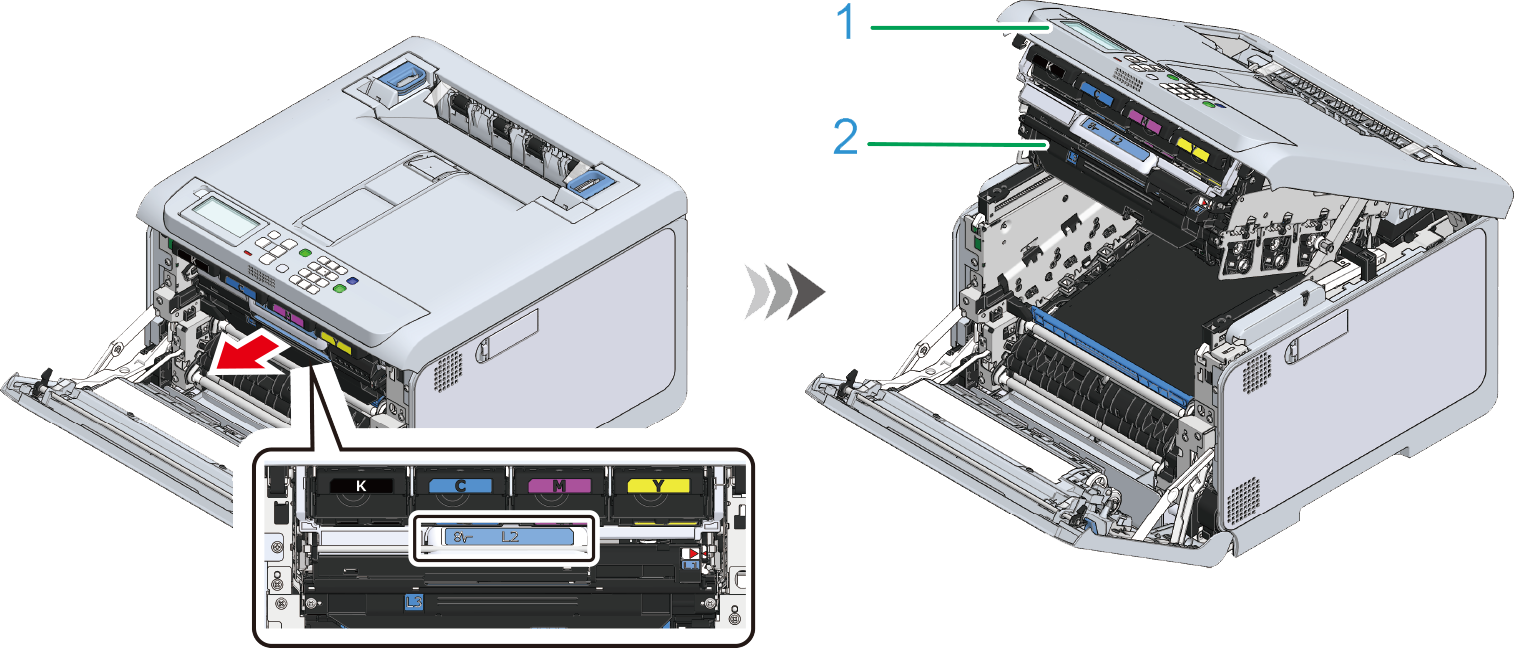

After opening the front cover, pull the L2 lever.
After the operation, both the output tray and the image drum basket are integrated and raised.
No. | Name |
|---|---|
| 1 | Output tray |
| 2 | Image drum basket |
When closing, close the output tray first, and then close the front cover with your both hands firmly.
