Front

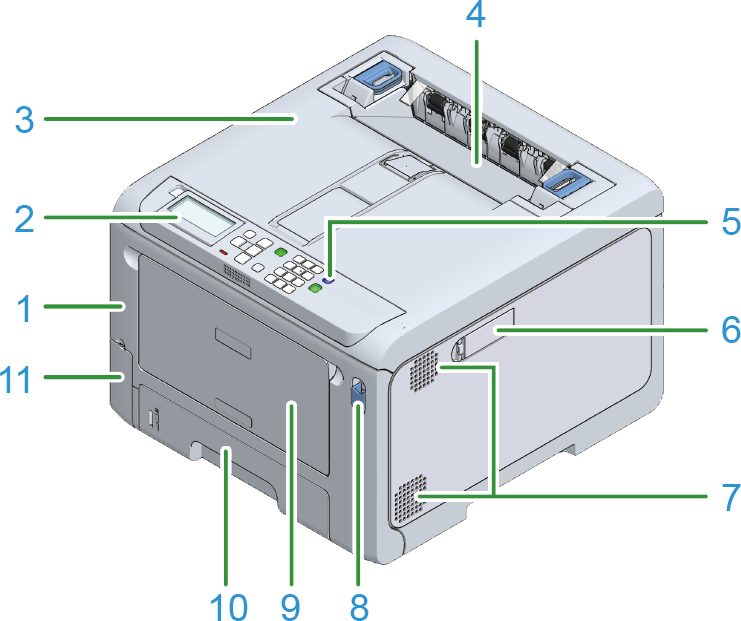

No. | Name | Function |
|---|---|---|
1 | Front cover | This is the cover on the front side of the main unit. You can open the front cover by pulling its lever towards yourself. |
2 | Operator panel | This is the panel used to operate the main unit. It comes with a display, functional buttons, a numeric keypad, a Fn key, an attention lamp, etc. |
3 | Output tray (Top cover) | This is the output tray on the top of the main unit. You can open it by pulling up the open lever inside after opening the front cover. |
4 | Fuser unit | This unit fixes the toner to the paper. |
5 | Power switch | Turns on/off the power of the main unit. Lights blue when the power is turned on, and lights off when the power is turned off. |
6 | Wireless LAN module cover | A cover for the housing of the wireless LAN module. |
7 | Air vents | Allows air to enter and exit from the inside of the main unit. Be careful not to block the air vents. |
8 | Front cover lever | This is a blue lever to unlock to open the front cover. |
9 | Multi Purpose Tray (MP tray) | In addition to paper of various sizes, you can also print on envelopes. |
10 | Tray 1 | Load the paper to print on. |
11 | Waste toner box cover | This is the storage port of the box that holds the waste toner. |
12 | Paper supporter | Load the paper in the MP tray. |
13 | Paper placement cover | Holds the paper loaded in the MP tray. |
