Replacing the black(K) toner cartridge and the waste toner box

The black(K) toner cartridge comes with a waste toner box.

By following on-screen instructions, replace the waste toner box first and then the black(K) toner cartridge.

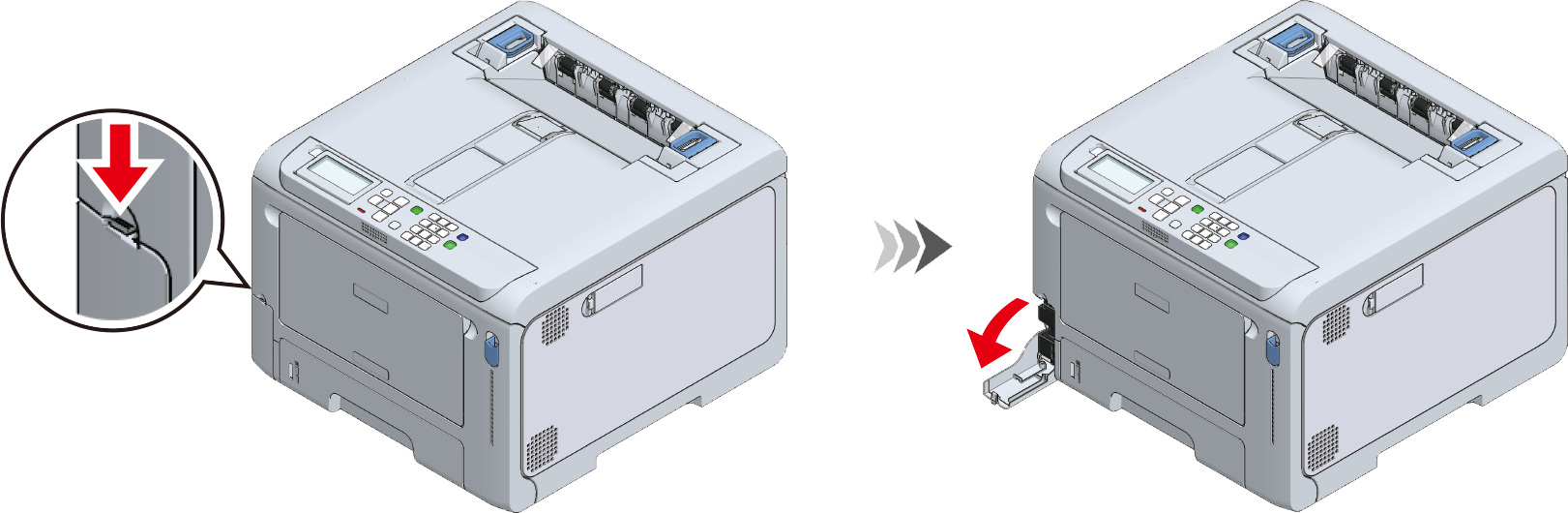

1. Press the knob on the lower left corner on the front of the machine, and open the waste toner box cover toward you.

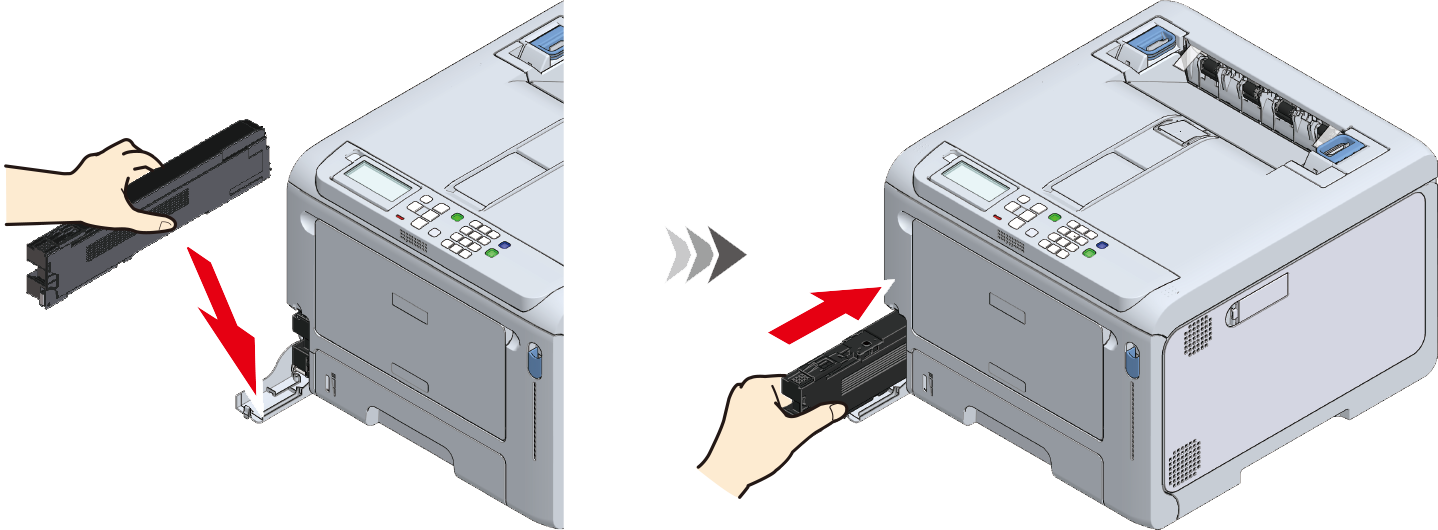

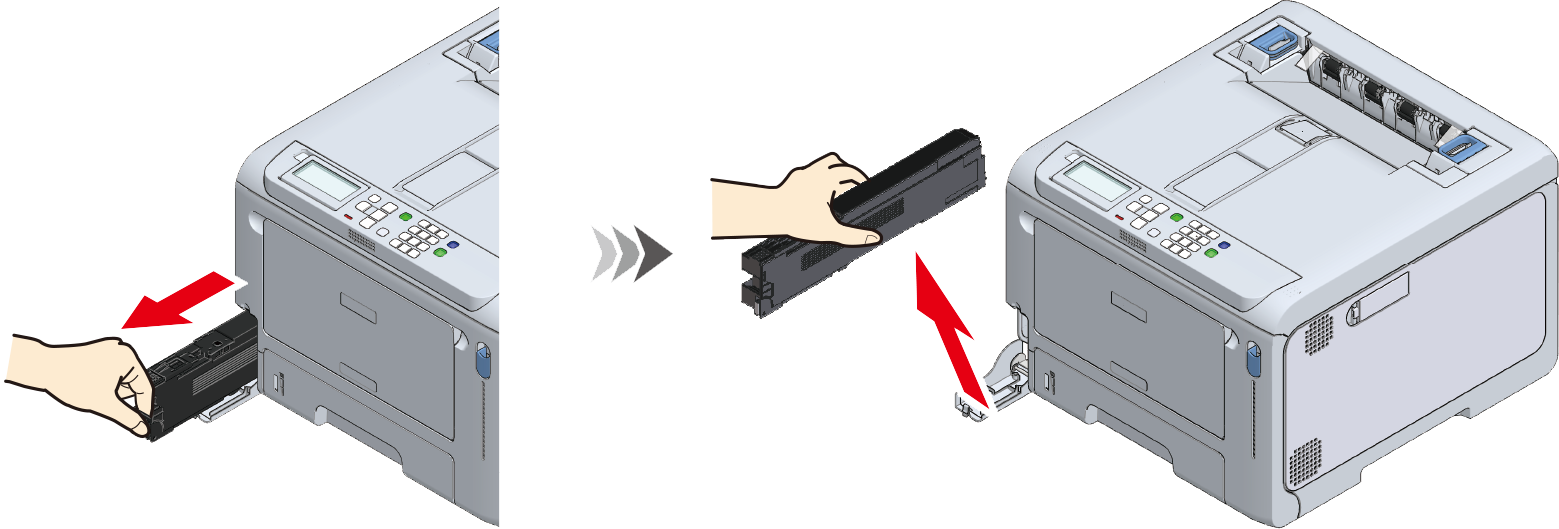

2. Put your finger on the recess of the waste toner box, pull it out halfway, and pull it out by the top.

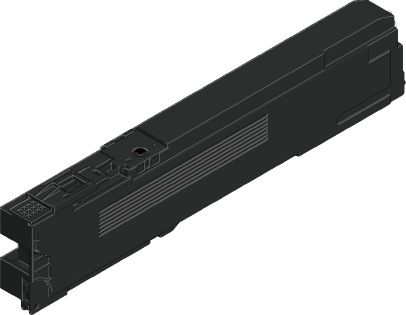

3. Prepare a new waste toner box.




4. Install the new waste toner box into this machine.

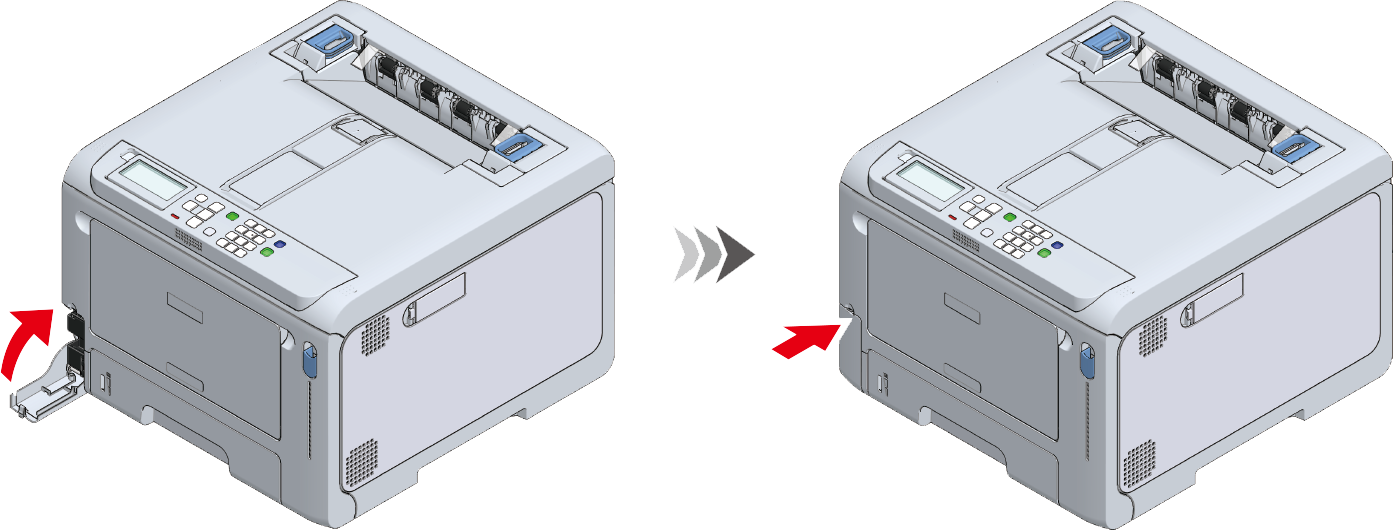

5. Close the cover of the waste toner box.

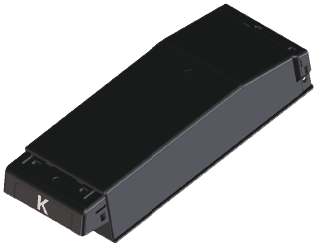

6. Take the new black(K) toner cartridge out of its packing box.

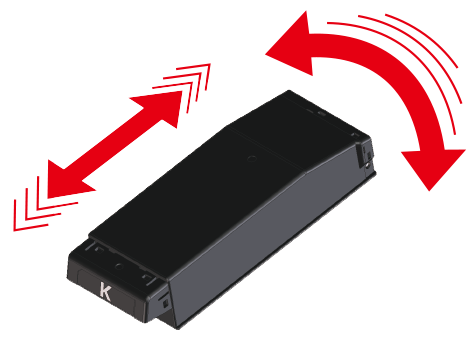

7. Shake the new toner cartridge both horizontally and vertically for several times.

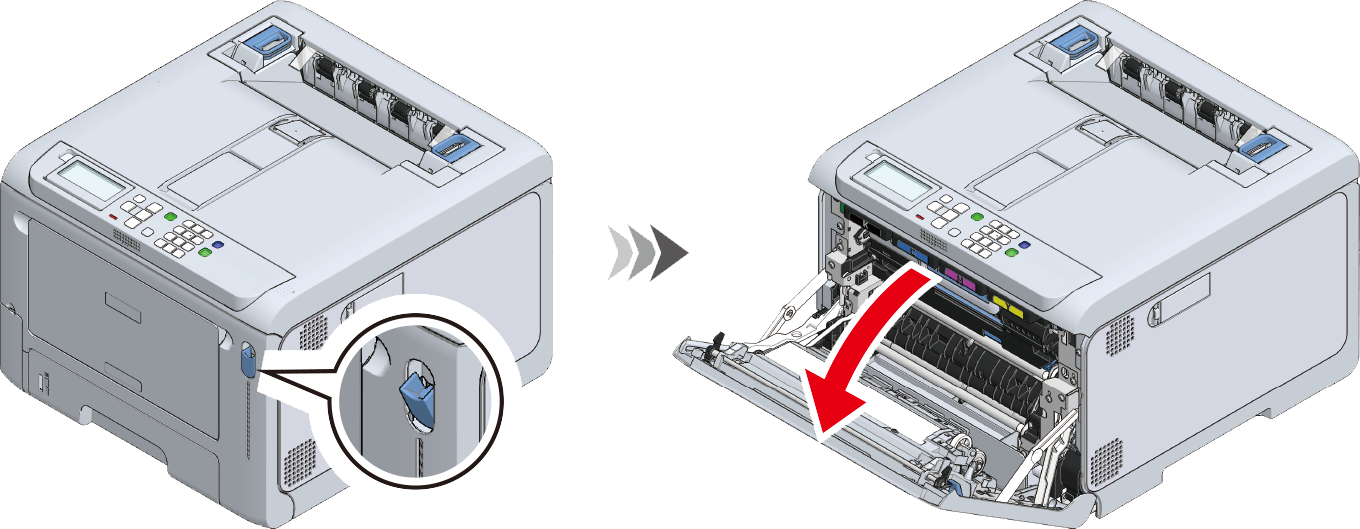

8. Pull the front cover open lever (blue) to open the front cover.



9. Pull out the black(K) toner cartridge from the machine.



10. Install the new black(K) toner cartridge into the machine.



11. Close the front cover firmly with both hands.



12. Press «OK».



13. Check that no error message appears on the display.
