Printing the menu map (configuration)

You can print the list of configurations (menu map) of this machine or the Printer Usage Report.


  1. Check that "Ready To Print" appears on the display.

    • If the machine is in the power save mode, press «POWER SAVE» to restore.

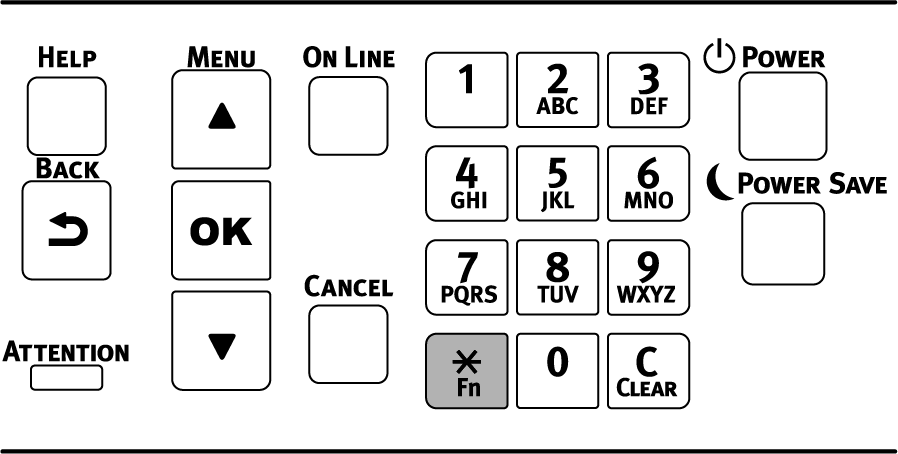

  2. Press «Fn» on the operator panel.

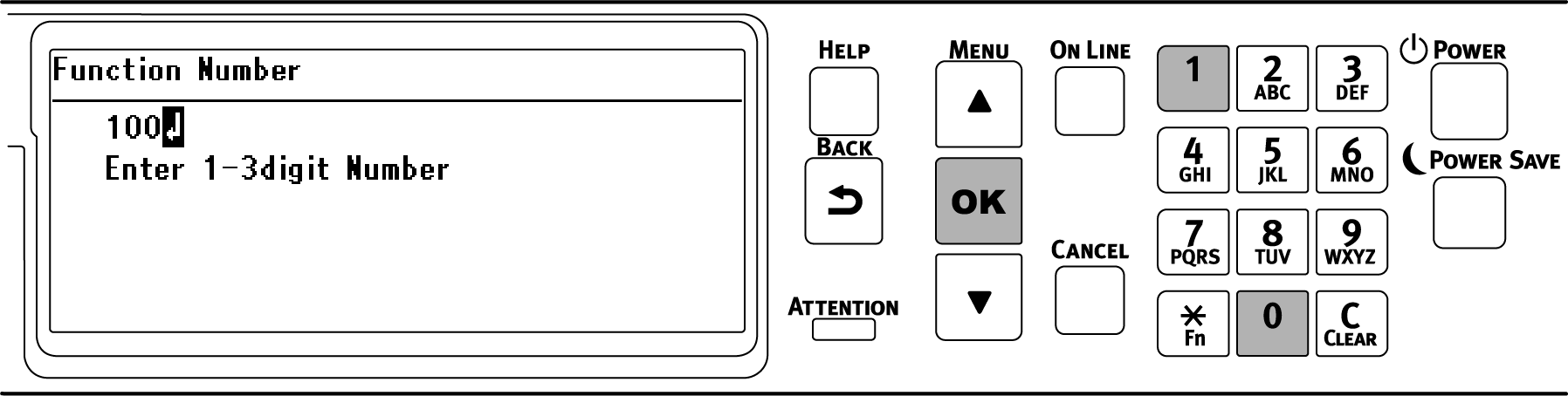

  3. On the function number screen, press «1», «0», «0» and finally «OK».

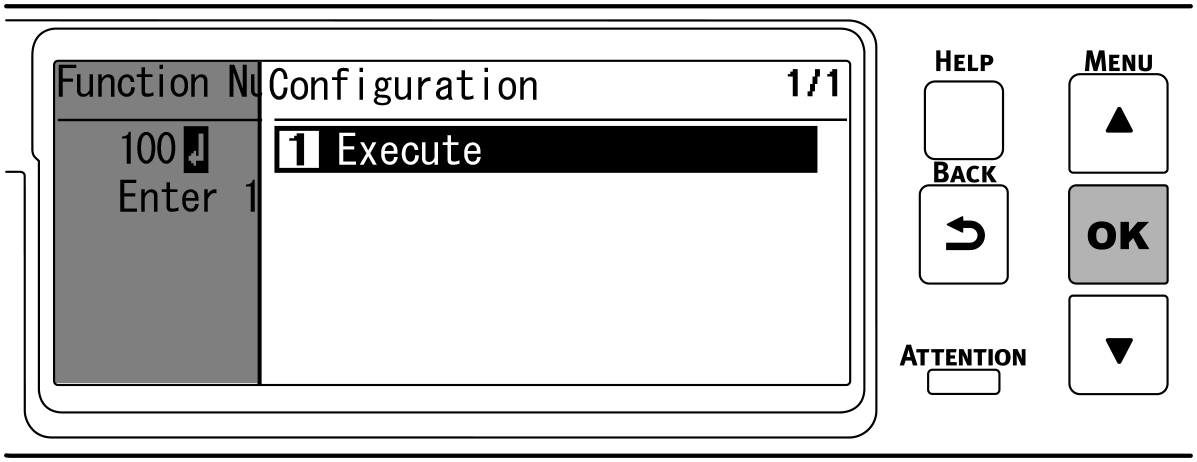

  4. Make sure that [Configuration] is displayed and [Execute] is selected, and press «OK».

  5. The configuration is printed .

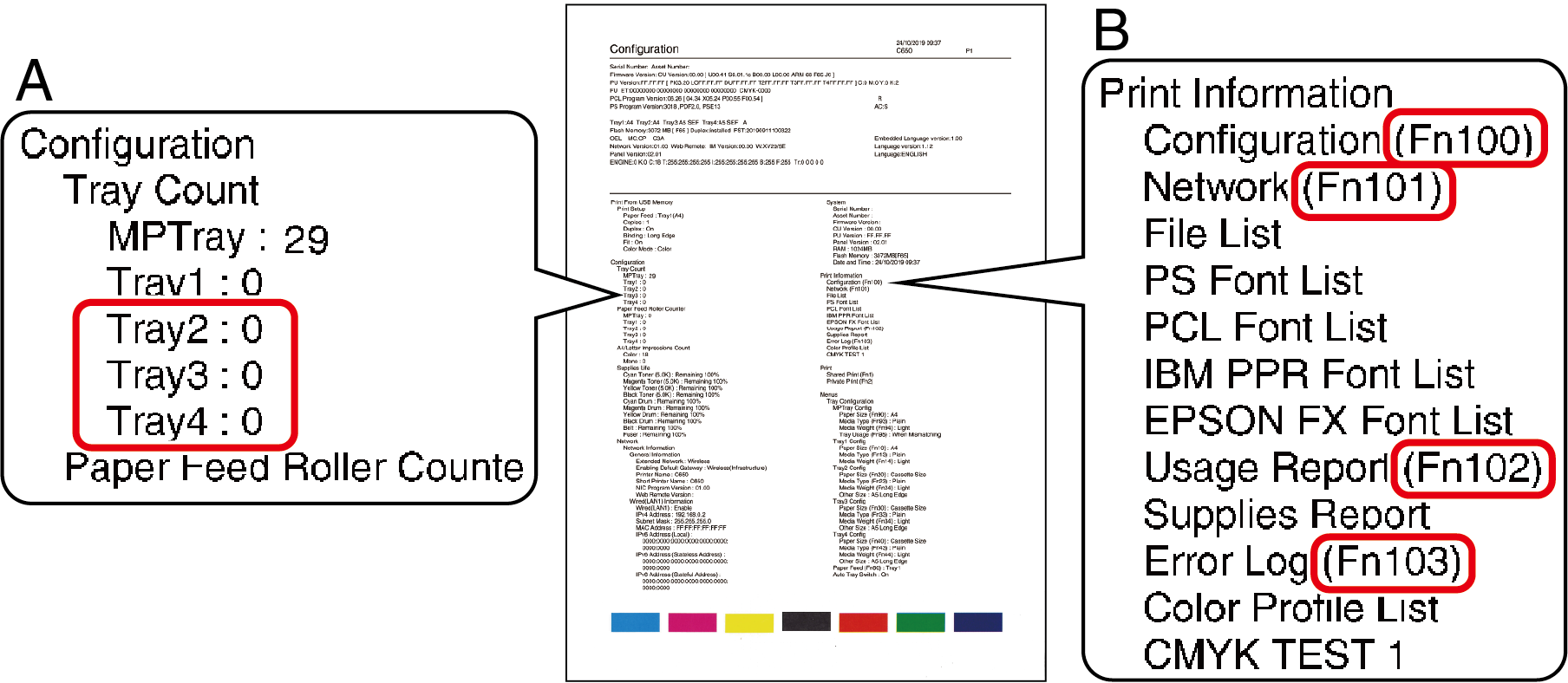

How to read the configuration
ADisplays the options that have been installed.
B

Displays the function number.

Setting with the short menu (Fn key)

  • For the information not listed in [Configuration], see "Menu list" - [Print Information].
