Connecting the power cord

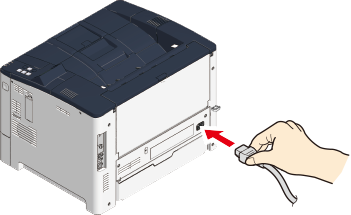

  1. Plug the power cord into the power connector of this machine.

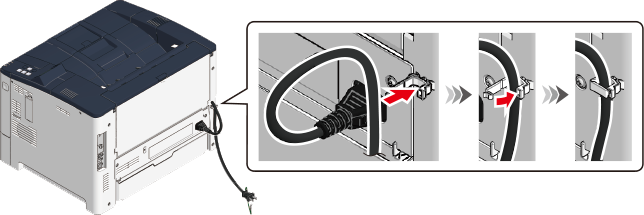

  2. Open the cord clamp by pressing its protrusion.

  3. Thread the power cord from top to bottom of the cord clamp. Close the cord clamp.

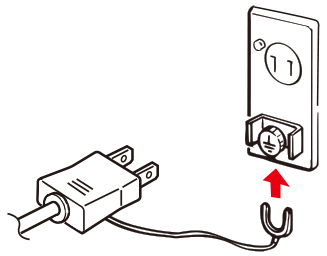

  4. Connect the earth wire to the earth terminal of the power outlet.

  5. Insert the power plug into the power outlet.


  • If you do not thread the power cord through the cord clamp when the paper cassette is extended backwards, the paper cassette and the power cord may come into contact and the power cord may be unplugged from the power connector. Be sure to thread the power cord through the cord clamp.


Refer to "Turning the power on/off" for details on how to turn the power on and off.
