Inside the main unit
No. | Name | Function |
|---|---|---|

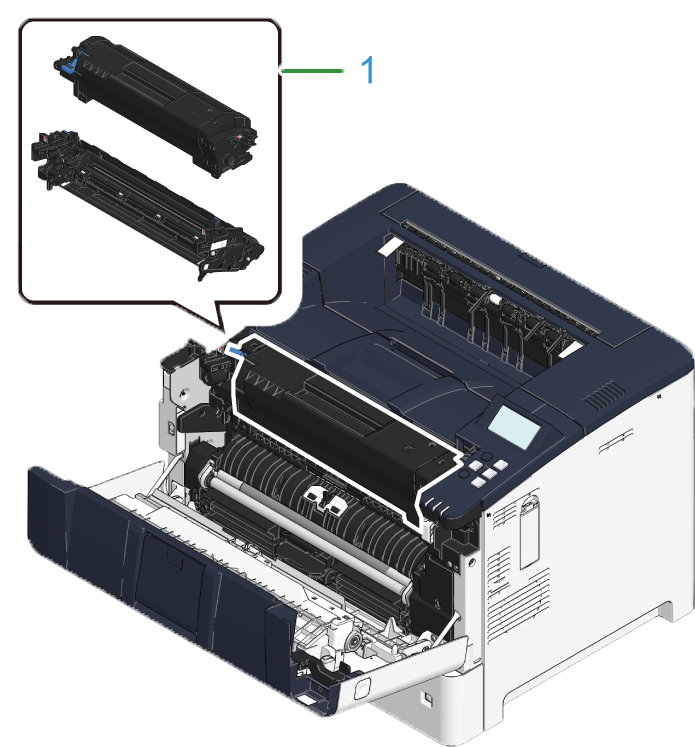

1 | Toner cartridge, image drum | The toner cartridge contains toner (powder ink) for printing. The image drum is a unit to create an image on the paper by using toner, which comes with a toner cartridge. Both the toner cartridge and the image drum are consumables. |

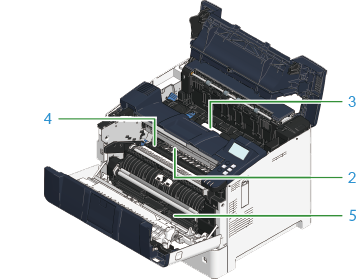

2 | LED head | Writes an image onto the image drum using light. |
3 | Fuser | This unit fixes the toner to the paper. |
4 | Transfer roller | This unit transfers toner to the paper. |
5 | Transport assistance guide | This part assists in the transport of small-sized paper.
|
