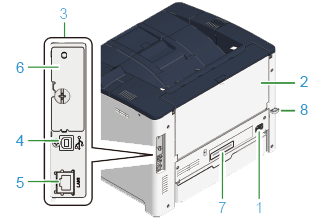

Back

No.
Name
Function

1

Power connector

This is where the included power cord is plugged in.

2

Rear coverOpen it to remove jammed paper.

3

Interface unit

There is a connector to connect to a PC.

4

USB interface connector

This is where the USB cable is plugged in when the computer and the main unit is connected with a USB cable.

5

Network interface connector (LAN1)

This is where the LAN cable is plugged in when the PC and the main unit is connected via a network.

6

Wired LAN module cover (LAN2)

This is the storage port of the optional Wired LAN module.

It cannot be used together with the Wireless LAN module at the same time.

  • If you are not using the Wired LAN module, do not remove this cover.

7

Serial numberThe machine-specific number.

8

Cord clamp

Thread the power cord so that it does not get caught in the paper cassette of Tray1.
