Printing the menu map (configuration)

  1. Check that "Ready To Print" appears on the display.

    • If the machine is in the power saving mode, press «OK» to restore.

  2. Press the scroll button ▼ on the operator panel to select [Print Information], and then press «OK».

  3. Check that [Configuration] is selected, and then press «OK».

  4. Check that [Configuration] is displayed and [Execute] is selected, and then press «OK».

  5. The configurations are printed.

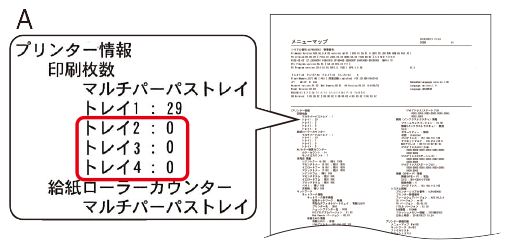

How to read the menu map
AThe optional expansion tray unit will be displayed if it has been installed.

  • For the printer information not listed in [Configuration], please refer to "Print Information".
