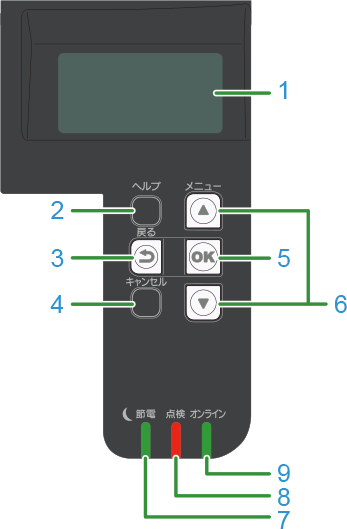

Parts identification of the operator panel
No. | Name | Function |
|---|---|---|
1 | Display | Displays the state of this machine and operation instructions. There are two types of standby screens: "Show Remaining Toner" and "Show Tray Information". The factory default setting is "Show Remaining Toner". |
2 | «HELP» button | Displays the help screen. To close the screen, press the «HELP» button again, or press the «BACK» or «CANCEL» button. |
3 | «BACK» button | Goes back to the previous screen. |
4 | «CANCEL» button | Cancels the current printing. Goes back to the standby screen when the menu is displayed. |
5 | «OK» button | Confirms the highlighted item. The machine wakes up when it is in the sleep mode. |
6 | Scrolls buttons ▲▼ | Used to select a menu or scroll the screen display. It can be used to input numbers in the numerical input screen. |
7 | POWER SAVE lamp | Lights green in the power save mode, and flashes green in the sleep mode. |
8 | ATTENTION lamp | Indicates the state of this machine. Lights off in the normal state. On: Indicates that a minor error has occurred. Flashing: Indicates that a major error has occurred. |
9 | ONLINE lamp | Lights on in green when the machine is online, and lights off when the machine offline. |
