Installation space

Install this machine on a flat desk which is larger than its bottom.

Keep sufficient space around this machine as shown in the following figure.

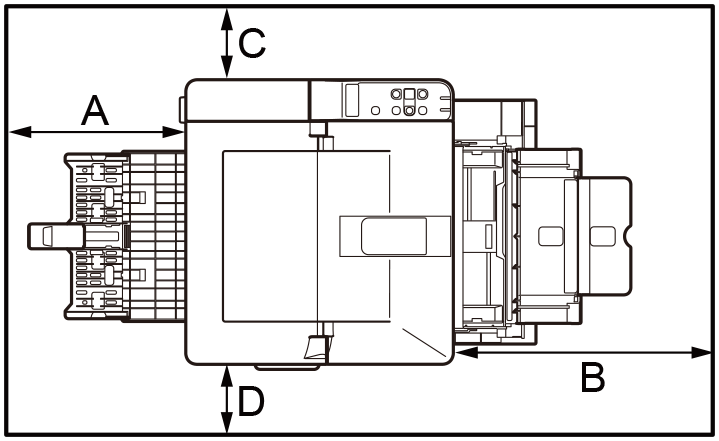

  • Plan view


    B433
    B513

    A

    When the rear output tray is not used: 10 cm
    When the rear output tray is used: 22 cm or above. Please keep it away from the wall so that it does not interfere with the alignment of the paper to be used.

    B

    		When the MP tray is not used: 25 cm
    When the MP tray is used: Check that there is enough space according to the size of paper to be used.

    C

    10 cm

    D

    10 cm

    • Depending on the installation environment, the temperature inside this machine may rise and the printing speed may slow down.


  • Side view


    B433
    B513

    E

    10cm

    10cm

    F

    43 cm

    47 cm
