View Information
Item |
Description |
---|---|
Status |
Displays the current status of the machine. All the warnings and errors that have occurred on the machine are displayed as "Alert information". You can also check the operating status of each network service, a list of machine information, and the IP address that is set to the machine. |
Counter |
Displays the number of printouts by printing or scanning. |
Supplies Life |
Displays the remaining amount and lifetime of consumables. |
Usage Report |
Displays the print statistics results. |
Network |
You can check general information, the status of TCP/IP, maintenance information, and other Network setting information. |
System |
Displays the machine information. |

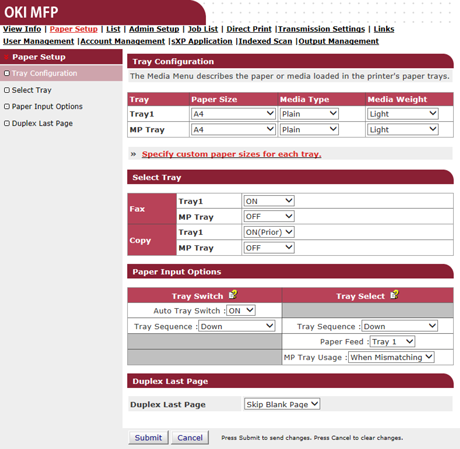

Paper Setup
This function is displayed only if you log in as the administrator of the machine.
Item |
Description |
---|---|
Tray Configuration |
You can set a paper size for each tray, custom paper, and other settings. When using the printer driver, the values that are set with the printer driver are given priority over these settings. |
Select Tray |
Select a tray that is used when a received document is printed or paper is automatically selected. |
Paper Input Options |
Sets tray switch and a priority order. |
Duplex Last Page |
Sets whether to perform duplex printing if the last page is a simplex page. |

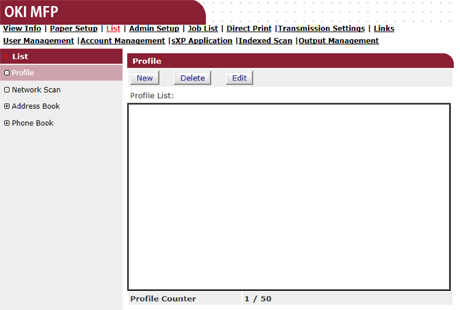

List
This function is displayed only if you log in as the administrator of the machine.
Item |
Description |
---|---|
Profile |
You can set information that is required for performing Scan to Network PC, and register it as a profile. You can set a protocol, save destination URL, file name, density, document size, color format, monochrome format, and other settings to a profile. |
Network Scan |
Registers, deletes, and edits a destination for a network scan. |
Address Book |
Registers and deletes e-mail addresses and e-mail groups in or from the address book of the machine. |
Phone Book |
Registers and deletes fax numbers and group numbers in or from the address book of the machine. |

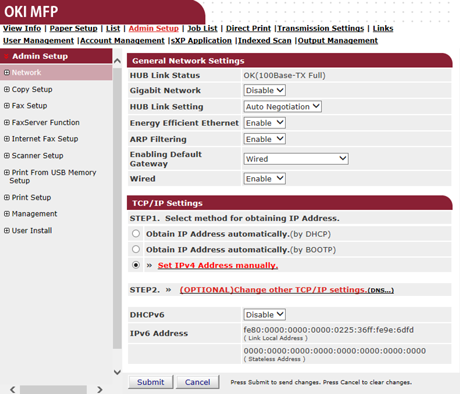

Admin Setup
This function is displayed only if you log in as the administrator of the machine.
-
Network
Item |
Description |
|
---|---|---|
General Network Settings |
Sets the general network settings. |
|
Wireless(Infrastructure) Setting |
Sets the Wireless(Infrastructure) settings. |
|
Wireless(AP Mode) Setting |
Sets the Wireless(AP Mode) settings. |
|
TCP/IP |
Sets TCP/IP information. |
|
NBT |
Sets NetBIOS over TCP information. |
|
Mail Server |
Sets a mail server. |
|
|
Receive Settings |
Sets an e-mail receive settings. |
Alert Settings |
Sets the function that enables you to receive e-mail alerts about events that have occurred on the machine. |
|
Fax Reception Notification Settings |
Sets Fax Reception Notification. |
|
SNMP |
Settings |
Sets SNMP. |
Trap |
Sets SNMP Trap. |
|
IPP |
Settings |
Sets the function that enables you to perform IPP print. |
Authentication |
Sets authentication. |
|
Google Cloud Print |
Sets Google Cloud Print information. |
|
Windows Rally |
Sets Windows Rally information. |
|
IEEE802.1X |
Sets EEE802.1X/EAP information. |
|
Secure Protocol Server |
Sets secure protocol server information. |
|
LDAP |
Sets LDAP information. |
|
Proxy |
Sets Proxy information. |
|
Security |
Protocol ON/OFF |
Stops a network protocol and network service that are not used. |
IP Filtering |
Restricts access by using IP addresses. Access from outside your company is also supported. However, this function requires sufficient knowledge about IP addresses. Some settings may result in serious problems that prevent you from accessing the machine via a network. |
|
MAC Address Filtering |
Restricts access by using MAC addresses. Access from outside your company is also supported. However, this function requires sufficient knowledge about MAC addresses. Some settings may result in serious problems that prevent you from accessing the machine via a network. |
|
SSL/TLS |
Encrypts communications between a computer (client) and the machine. |
|
IPSec |
Sets the encryption for communications between a computer (client) and the machine, and settings to prevent tampering. |
|
WebPage Authentication Method |
Sets WebPage Authentication Method. |
|
Maintenance |
Reset/Restore |
Restarts and resets a network. Even if you access the Web page from the Web browser after restarting, the Web page is not displayed until the restart is complete. Resetting restores the IP address to its default status, resulting in information you manually set being lost. In such a case, the Web page cannot be displayed. |
Network Scale |
Improves operation efficiency on a network. This setting is very effective when a hub that has the spanning tree function is used, or a computer and the machine are connected one-on-one with a cross cable. |
-
Copy Setup
You can set the image quality, density, scan size, margins, edge erase, duplex, and other settings.
-
Fax Setup
Item |
Description |
---|---|
Default Settings |
Sets the image quality, density, and other default settings for sending faxes. |
Security Function |
Sets security for sending faxes. |
Other Settings |
Sets other settings for sending faxes. |
-
FaxServer Function
Item |
Description |
---|---|
Environmental Settings |
Sets the environmental settings. |
Default Settings |
Sets the default settings. |
Security Function |
Sets the security settings. |
-
Internet Fax Setup
Sets Internet Fax.
-
Scanner Setup
Item |
Description |
---|---|
Default Settings |
Sets the image quality, density, and other default settings for scanning. |
E-mail Setup |
Sets e-mail settings that are required for performing Scan to E-mail. |
USB Memory Setup |
Sets USB Memory settings for performing Scan to USB Memory. |
TWAIN Setup |
Sets TWAIN. |
WSD Scan Setup |
Sets WSD Scan. |
PC Scan Mode |
Sets PC Scan mode. |
Scanner Adjust |
Sets Auto Color Judge Level and Blank Page Skip Level. |
-
Print From USB Memory Setup
Set Print From USB Memory.
Item |
Item Description |
---|---|
Default Settings |
Sets default settings when printing from USB Memory. |
-
Print Setup
Item |
Description |
|
---|---|---|
Print Menu |
Print Setup |
Sets the number of copies, resolution, and other settings. When using the printer driver, the values that are set with the printer driver are given priority over these settings. |
Printer Adjust |
Sets manual timeout, jam recovery, and other print adjustment settings. |
|
Print Position Adjust |
Adjusts front X, front Y, back X and back Y positions. |
|
Drum Cleaning |
Sets cleaning of an image drum. |
|
Hex Dump |
Displays all the received print data in hex. To exit this mode, restart the machine. |
|
Color Menu |
Sets Color settings. |
|
System Configuration Menu |
Sets operation modes, alarm release, and other machine operation settings for each situation. |
|
Emulation |
PCL Setup |
Sets PCL. |
PS Setup |
Sets PS. |
|
XPS Setup |
Sets XPS. |
|
IBM PPR Setup |
Sets IBM PPR Setup. |
|
EPSON FX Setup |
Sets EPSON FX Setup. |
|
Private Print Setup |
Job Verification |
Sets whether to verify a job before printing. If enabled, the machine verifies that the job is not altered before starting printing. The security is enhanced, however, it will take longer to start printing. |
Erase job option |
Sets how to delete a job. You can overwrite deleted data so that it will not be restored. If enabled, it will take longer to delete. Available value: No overwrite/Zero out once/Multiple random overwrites |
|
Storage Period of Jobs |
Sets the storage period of jobs. If the set period elapses after jobs are stored, the jobs will be automatically deleted. Available value: 15 minutes/30 minutes/1 hour/2 hours/4 hours/8 hours/12 hours/1 day/2 days/3 days/4 days/5 days/6 days/7 days |
-
Management
You can set device settings.
Item |
Description |
|
---|---|---|
Local Interface |
USB Menu |
Sets USB. |
Access Control Setup |
Sets user authentication and access control. |
|
System Setup |
Sets display units and other settings. |
|
Power Save |
Sets power save settings. |
|
Memory Setup |
Sets the reception buffer size and resource save area. |
|
Language Maintenance Setup |
Sets Language settings. |
|
Font Setup |
Sets the output mode for fonts. |
|
Admin Password |
Sets an administrator password. |
|
Reset Settings |
Initializes all the data that is set in "Management", including speed dial, copy and fax function settings. |
|
Print Statistics |
Enables/disables consumable counter. |
-
User Install
Item |
Description |
---|---|
Power Setup |
Sets Auto power off and Power supply Return. |
Fax Setup |
Sets a fax line, sender, and other settings. |
Time Setup |
Sets the time to the machine. |
Business Phone Setup |
Sets up business phones. |
Other Settings |
Sets other settings. |
Memo
If [Auto] is selected for Time Setup, the time cannot be set from the operator panel.

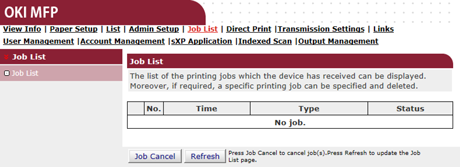

Job List
Item |
Description |
---|---|
Job List |
Displays a list of print jobs that are sent to the machine. You can delete unnecessary jobs. |
Job Log |
Display the job history. |

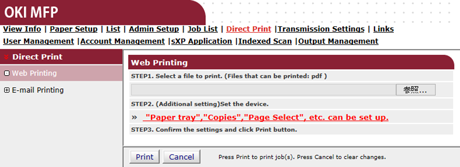

Direct Print
Item |
Description |
|
---|---|---|
Web Printing |
Specifies and prints a PDF file. |
|
E-mail Printing |
E-mail Printing |
Prints a PDF, JPEG and TIFF file if it is attached on an e-mail that the machine receives. |
Receive Settings |
Sets an e-mail receive settings. |

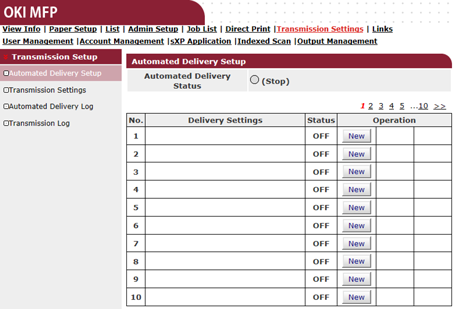

Transmission Settings
This function is displayed only if you log in as the administrator of the machine.
Item |
Description |
---|---|
Automated Delivery Setup |
Sets the function that enables you to automatically convert a received fax into an e-mail and send it, and the function that enables you to automatically deliver a received e-mail. |
Transmission Settings |
Sets the function that enables you to save received and sent faxes and e-mail data to a server and other storages. |
Automated Delivery Log |
Displays the automated delivery logs. |
Transmission Log |
Displays the transmission logs. |

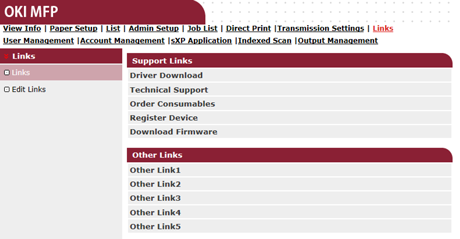

Links
Item |
Description |
---|---|
Links |
Displays the links that are set by the manufacturer, and the links that are set by your administrator. |
Edit Links (This function is displayed only if you log in as the administrator of the machine.) |
Your administrator can set any URLs. Five support links and five other links can be registered. Include "http://" in an entered URL. |
