Sending a Fax to a Destination Confidential Box (Fcode Transmission)

You can perform Fcode confidential transmission by entering the sub address and password that are registered to the Fcode confidential box of the destination machine. Check the destination sub address and password before sending.

  1. Press [Fax/Internet Fax] or the (FAX) button.

  2. Set a document in the ADF or on the document glass.

  3. Press [Fax].

  4. Press [Communicating Function] on the [Advanced] tab.

  5. Press [Fcode Tx].

  6. Enter the sub address of the box that is registered to the recipient's machine.

    The sub address is up to 20 characters in length.

  7. Press [OK].

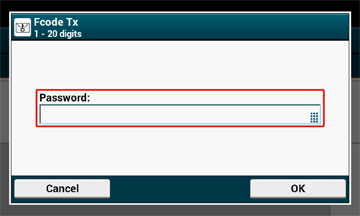

  8. Enter the password registered in the destination machine if necessary.

    Memo

    If no password is required, press [OK] right away and go to step 10.

  9. Press [OK].

  10. Press [Back].

  11. Add a destination on the [Fax] tab.

    Specifying a Destination (Direct Entry)

    Specifying a Destination (Phone Book)

    Specifying a Destination (One-touch Button)

    Specifying a Destination (Transmission History and Reception History)

  12. Change other settings if necessary, and then press the (START) button.
