How to Use of the Operator Panel

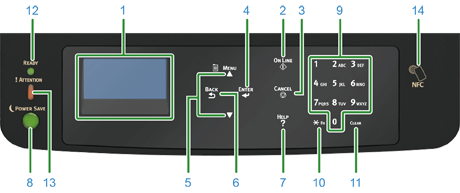

This section explains the names and functions of components on the operator panel.

No.

Name

Function

1

Display screen

Displays operating instructions and the status of the printer.

2

«ON LINE» button

Switches between online and offline modes.

3

«CANCEL» button

Cancels the current print immediately.

4

«ENTER» button

Confirms the highlighted item.

5

Scroll button or

Selects the menu or scrolls the screen.

6

«BACK» button

Returns to the previous screen.

7

«HELP» button

Displays the help screen. To close, press the «HELP» button, «BACK» button, or «CANCEL» button.

8

«POWER SAVE» button

  • Enters or exits the power saving mode.

  • Exits the sleep mode.

Lights up green in the power save mode and blinks green in the sleep mode.

9

Numeric Keypad

  • Enters numbers.

  • Enters alphabetical characters and symbols.

A password can be entered only with a numeric keypad.

10

«Fn» key

Displays the equipment setting menu screen with a shortcut function.

11

«CLEAR» key

Executes the following actions according to the entered items when pressed or held down.

  • Minimizes a setting value.

  • Enters zero for a setting value.

  • Deletes a character.

  • Cancels the selected item.

Returns to the previous settings. Not available when entering an IP address.

12

«READY» indicator

Lights up green in online mode and turns off in offline mode.

13

«ATTENTION» indicator

Lights up or blinks orange when an error occurs in the device.

14

NFC mark

Bring the device closer to this mark when using the NFC function.

For details on the NFC function, refer to "Using from a Mobile Device".
