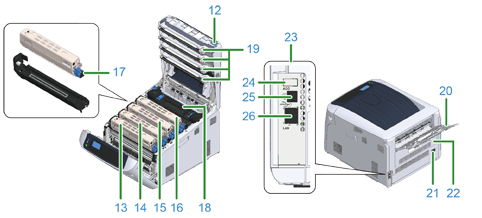

Names of Components

1

Front cover

Front cover of the printer. Pull the front cover open lever to open the cover.

2

Front cover open lever

Lever to unlock when opening the front cover.

3

Operator panel

This is the panel to operate the printer.

Display screen operation buttons, numeric keys, function keys, and attention indicator lamp are on the panel.

4

Power switch

Turns the machine on and off.

5

Output tray (Top Cover)

Printouts are stocked here. After opening the front cover, press the open button inside the printer to pop up.

6

Multipurpose tray (MP Tray)

Various sizes of paper can be loaded.

7

Tray 1

Load paper.

8

Air vents

Outlet/inlet for air.

Please be careful not to block the opening when placing the printer.

9

Wireless LAN module cover

Cover for installation part of the wireless LAN module.

Paper supporter

Supports paper.

11

Paper set cover

Holds paper loaded on the Multipurpose tray.

12

Open button

Press this button to unlock when opening the output tray (Top Cover).

13

Toner cartridge, Image drum (K: black)

A toner cartridge contains toner (powdery ink) for printing.

Image drum electrifies paper and transcribes toner using static electricity. A drum is combined with a drum cartridge.

Toner cartridges and image drums are consumables.

14

Toner cartridge, Image drum (Y: yellow)

15

Toner cartridge, Image drum (M: magenta)

16

Toner cartridge, Image drum (C: cyan)

17

Toner cartridge lock lever

Fasten a toner cartridge to an image drum.

18

Fuser unit

Add heat and pressure to toner transcribed on paper to bond it.

19

LED head (four heads)

Expose image drum to light to copy letters and images.

20

Rear output tray

Outlet when paper is output with the printed side up.

21

AC power socket

Insert the supplied power code.

22

Duplex unit *¹

Component for duplex printing.

23

Interface part

Connectors for connecting to a computer can be found.

24

Accessory connector

Port to insert a USB memory.

25

USB interface connection

Insert a USB cable when connecting a computer to the printer with a USB cable.

26

Network interface connection

Insert a LAN cable when connecting a computer to the printer via a network.
