Connecting a LAN Cable

Connect the printer to a computer using wired LAN network.

Before installing the printer driver, connect the printer to a network using a LAN cable.

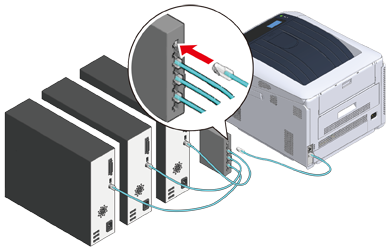

  1. Prepare a LAN cable (1) and hub (2).

    A LAN cable is not supplied. A LAN cable (category 5e or higher, twist pair, strait) is required.

  2. Turn off the machine.

  3. Insert one end of the LAN cable (1) into the network interface connector.

  4. Insert the other end of the LAN (1) cable into the hub (2).

    Next, set the Network information such as IP addresses of the printer.

  5. Turn on the printer.

  6. Press the scroll button several times to select [Admin Setup], and press the «ENTER» button.

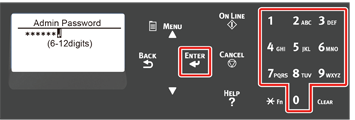

  7. Enter the administrator password, using the numeric (0-9) keys and press the «ENTER» button.

    The factory default administrator password is "123456". If the administrator password is changed, enter the updated password.

  8. Check that [Network Setup] is selected, press the «ENTER» button.

  9. Press the scroll button several times to select [IP Address Set], and press the «ENTER» button.

    If setting the IP address manually, press the scroll button and select [Manual], and press the «ENTER» button. Proceed to the step 10.

    If obtaining the IP address automatically, check that [Auto] is selected, and press the «ENTER» button. Proceed to the step 16.

  10. Press the «BACK» button until [Network Setup] is displayed. Press the scroll button several times to select [IPv4 Address], and press the «ENTER» button.

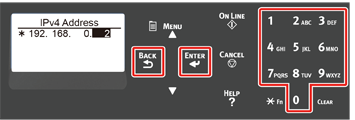

  11. Enter the IP address using the numeric (0-9) keys, and press the «ENTER» button.

    In the same way, enter the next 3 digits. To move to the next box, press the «ENTER» button.

    All input was completed, then press the «BACK» button.

  12. Press the scroll button to select [Subnet Mask], and press the «ENTER» button.

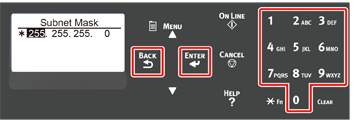

  13. Enter the subnet mask in the same manner of IP address. All input was completed, then press the «BACK» button.

  14. Press the scroll button to select [Gateway Address], and press the «ENTER» button.

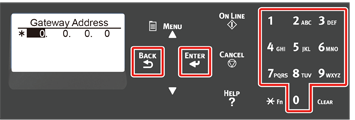

  15. Enter the Gateway Address in the same manner of IP address. All input was completed, then press the «BACK» button.

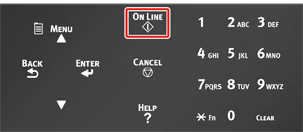

  16. Press the «ON LINE» button to complete the network settings.

    Go to the procedure to "Installing a Printer Driver to a Computer".
