When you scan a document with the document glass cover opened or when you scan a book, a black shadow may appear around the edges on the scanned image. The edge erase function allows you to erase the black shadow.
Memo
[Edge Erase] is set to [ON], and [Width] to 5 mm by factory default.
The default value of the edge width to erase can be changed from [Admin Setup] > [Scanner Setup] > [Default Settings] > [Edge Erase] > [ON] > [Width].
-
Press [Scan] or the
(SCAN) button. -
Set a document in the ADF or on the document glass.
-
Press [Edge Erase] on the [Image Settings] tab.
-

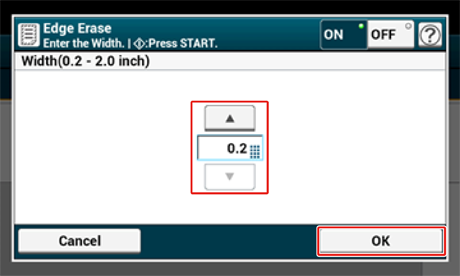

Enter a value from 5 to 50 mm (0.2 to 2.0 inches) in [Width] by using the numeric keypad or pressing
on the touch panel, and then press [OK].
-
Change other settings if necessary, and then press the
(START) button.
