A black shadow may be scanned around the edges of the scanned document. The edge erase function allows you to erase the black shadow.
Memo
-
[Edge Erase] is set to [OFF] by factory default.
-
The default value of the edge width to erase can be changed from [Admin Setup] > [Fax Setup] > [Default Settings] > [Edge Erase] > [ON] > [Width].
-
Press [Fax/Internet Fax] or the
(FAX) button. -
Set a document in the ADF or on the document glass.
-
Press [Fax].
-
Press [Edge Erase] on the [Advanced] tab.
-

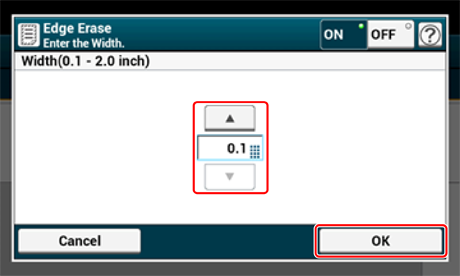

Enter a value from 2 to 50 mm (0.1 to 2.0 inches) in [Width] by using the numeric keypad or pressing
on the touch panel, and then press [OK].
Memo
If you press [Cancel], the screen returns to the previous screen without saving the changes.
-
Change other settings if necessary, and then press the
(START) button.
