Press the button (A) and open the output tray (a) completely.
Burns may result.
The fuser unit is extremely hot. Do not touch it.
-
Remove the four image drums from the machine and place the image drums on a flat surface.
Note
While removing consumables, be careful not to hit them to the LED head.
-
Cover the removed image drums with paper so that the image drums are not exposed to light.
-
Remove the jammed paper slowly by pulling the edge of paper.
-
If paper jams in the fuser unit, press the jam release lever on the fuser unit and slowly pull the jammed paper toward you.
-
Tilt back the lock levers (c) on the both sides of the fuser unit toward you.
-
Hold the fuser unit handle and lift the fuser unit out of the machine.
Note
While removing the fuser unit, be careful not to hit it to the LED head.
-
If jammed paper remains in the machine, hold the both sides of the paper to remove it gently.
-
Hold the fuser unit handle and place the fuser unit into the machine.
Note
While setting the fuser unit, be careful not to hit it to the LED head.
-
Tilt the lock levers (c) on the both sides of the fuser unit.
-
Put all four image drums back into the machine.
Note
While setting consumables, be careful not to hit them to the LED head.
-

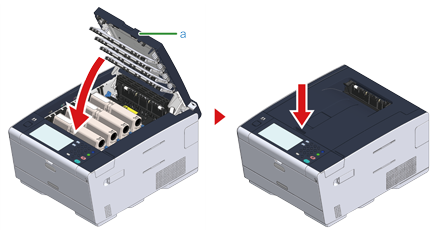

Close the output tray (a) slowly and push the center of the output tray for confirmation.
Task is complete.
