Deleting a Registered Destination (Profile)

You can delete a destination (profile) in the following three ways. This manual recommends to use Configuration Tool or the Web page where you can enter information with the computer keyboard.

This section describes the change and deletion methods that use Configuration Tool on a computer.

If you click (Save to device), the changed settings are reflected to this machine.

Note

  • To use the Profile Manager, install the User Setting plug-in. You can install the User Setting plug-in at the same time as when installing Configuration Tool or install the plug-in later.

    Installing Software

  • You must register the machine in Configuration Tool in advance.

    Starting Configuration Tool

  1. Click [Start], and then select [All Programs] > [Okidata] > [Configuration Tool] > [Configuration Tool].

  2. Select the machine from [Registered Device Table].

  3. Select the [User Setting] tab.

  4. Click [Profile Manager].

  5. Enter the administrator password, and then click [OK].

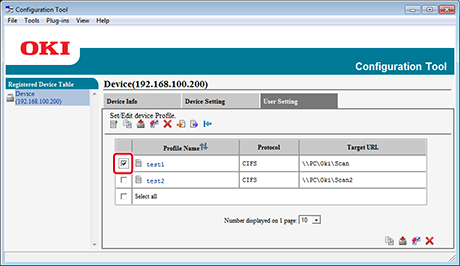

  6. Click a profile name to delete.

  7. Click (Delete).

    Memo

    To delete all the destinations (profiles), click (Delete all).

  8. Click (Save to device).

This section describes the registration and deletion methods that use the Web page on a computer.

  1. Start a Web browser.

  2. Enter "http://(The IP address of this machine)" in the address bar, and then press the <Enter> key.

    About the IP Address of this machine, refer to "Checking the Information of the Machine".

  3. Click [Administrator Login].

  4. Enter "admin" in [User Name] and the administrator password of the machine in [Password], and then click [OK].

    For Mac OS X, enter "admin" in [Name] and the administrator password of the machine in [Password], and then click [Login].

  5. Click [SKIP].

  6. Click [List] at the top of the screen.

  7. Click [Profile] on the left side of the screen.

  8. Click a profile to delete.

  9. Click [Delete].

  10. Click [OK] in a dialog box.

  1. Press [Device Settings] on the touch panel.

  2. Press [Profile].

  3. Select a number, and then press [Delete].

  4. When a confirmation screen is displayed, press [Yes].
