Mac OS X PS Printer Driver
You can switch between the [Layout], [Color Matching], [Paper Handling], [Paper Feed], [Cover Page], [Color], [Print Options], [User Authentication], [Supply Levels] panels for settings.
[Layout] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Pages per Sheet |
Selects the number of pages that is printed on a sheet of paper. |
|
2 |
Layout Direction |
Specifies the layout that is applied when printing multiple pages on a sheet of paper. |
|
3 |
Border |
Specifies a type of a boundary. |
|
4 |
Two-Sided |
Specifies when performing duplex printing. |
|
5 |
Reverse page orientation |
Reverses the direction of a page to print by selecting this check box. |
|
6 |
Flip horizontally |
Flips left and right to print by selecting this check box. |
[Color Matching] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
ColorSync |
Specifies the ColorSync function. |
|
2 |
In printer |
Performs color matching with this machine. |
|
3 |
Profile |
Specifies a profile. |

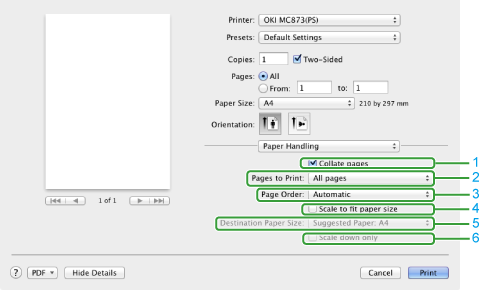

[Paper Handling] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Collate pages |
Prints in units of copies by selecting this check box. |
|
2 |
Pages to Print |
Specifies pages to print. |
|
3 |
Page Order |
Specifies a page order to print. |
|
4 |
Scale to fit paper size |
Prints to fit a paper size. A document may not be printed correctly depending on the setting. Enlarges or reduces a document to fit the output paper size by selecting this check box. |
|
5 |
Destination Paper Size |
Selects the output paper size when the [Scale to fit paper size] check box is selected. |
|
6 |
Scale down only |
Only reduces a document to fit the output paper size by selecting this check box. |

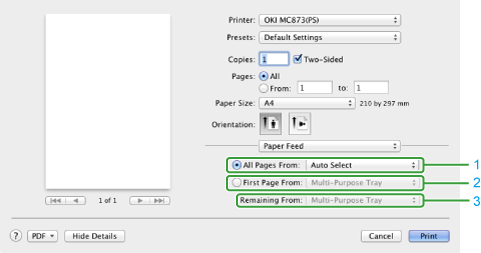

[Paper Feed] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
All Pages From |
Specifies the paper feed tray. If you specify [Auto Select], a tray is automatically selected. |
|
2 |
First Page From |
Select this setting to print only the first page from the specified tray. |
|
3 |
Remaining From |
Select this setting to print the remaining pages from the specified tray. |

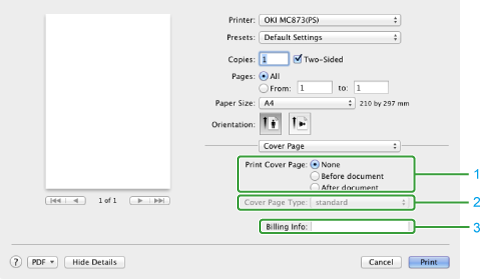

[Cover Page] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Print Cover Page |
Specifies the cover printing. |
|
2 |
Cover Page Type |
Specifies a string when printing the cover. |
|
3 |
Billing Info |
This function is not available. |

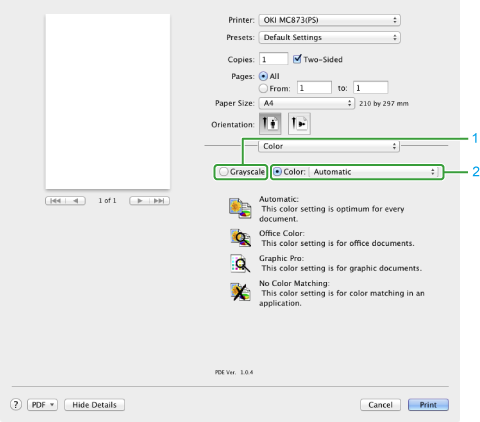

[Color] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Grayscale |
Specifies to use monochrome printing. |
|
2 |
Color |
Specifies alignment to color mode when printing in color. |

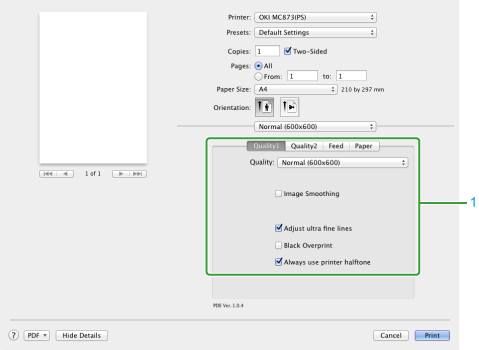

[Print Options] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Quality1, Quality2, Feed, Paper |
Specifies the print quality, toner saving, paper type, etc. |

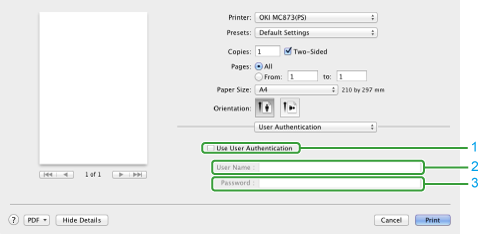

[User Authentication] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
User Authentication |
Select this check box if you set user authentication when printing. |
|
2 |
User Name |
The user name for user authentication. |
|
3 |
Password |
The password for user authentication. |

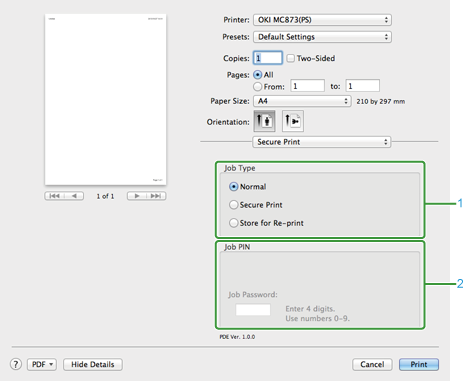

[Secure Print] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Job Type |
Specifies the job type. [JOB PIN] can be used if [Secure Print] or [Store for Re-print] is selected. |
|
2 |
Job PIN |
Specifies the job password for Print Stored job. |

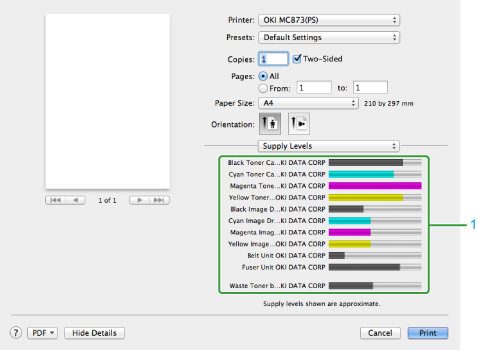

[Supply Levels] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Consumables |
Displays the remaining amount of consumables. |
