Easy Setup

In [Easy Setup], you can change the settings of date/time, fax, network, e-mail function by using [Device Settings] on the operator panel.

  1. Press [Device Settings] on the touch panel.

  2. Press [Easy Setup].

  3. Enter the administrator name and password and press [OK].

    The factory default administrator name and password are "admin" and "aaaaaa" respectively.

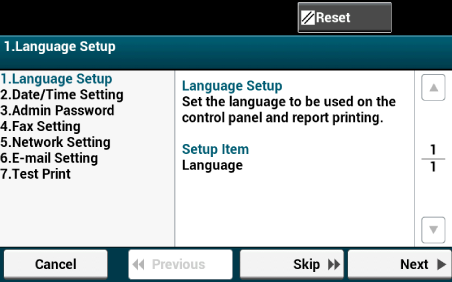

  4. Follow the on screen instructions.

    Item

    Description

    Language Setting

    Sets the language that is displayed on the operator panel.

    Date/Time Setting

    Time Zone

    Sets the GMT time zone.

    Daylight Saving

    Sets daylight saving to ON or OFF.

    Server

    SNTP Server (Primary)

    Sets the SNTP server to use for setting the current date and time. You can enter up to 64 characters.

    SNTP Server (Secondary)

    Manual

    Date

    Sets the current date and time manually.

    Time

    Admin Password

    New Password

    Enter Password (Verify)

    Changes the administrator password. 6 to 12 characters can be used.

    Fax Setting

    Fax Number

    Sets the fax number of this machine. You can enter up to 40 digits.

    Sender ID

    Sets the sender's information. You can enter up to 22 characters.

    Network Setting

    Enabling Default Gateway

    Sets which default gateway to be enabled between wired LAN or wireless LAN.

    Wireless Setting (If wireless LAN module fitted)

    Automatic Setup (WPS)

    WPS-PBC

    WPS-PBC is executed.

    WPS-PIN

    WPS-PIN is executed.

    Wireless Network Selection

    A list of access point name found in the search

    Displays a list of wireless LAN access points' names that are found in a search.

    Manual Setup

    SSID

    Enter an SSID.

    Security

    Selects the security of the wireless LAN function.

    "WPA-EAP" and "WPA2-EAP" can be set only in Web.

    WEP Key

    Enter WEP Key.

    Displays if [WEP] is selected for [Security].

    WPA Encryption Type

    Select a WPA/WPA2-PSK or WPA2-PSK encryption type.

    Displays if [WPA/WPA2-PSK] or [WPA2-PSK] is selected for [Security].

    WPA Pre-shared Key

    Enter the Pre-shared Key.

    Displays if [WPA/WPA2-PSK] or [WPA2-PSK] is selected for [Security].

    Wireless reconnection

    Wireless reconnection is executed.

    IP Address

    Sets the IP address. You can enter up to 15 characters.

    Subnet Mask

    Sets the subnet mask. You can enter up to 15 characters.

    Default Gateway

    Sets the gateway address. You can enter up to 15 characters.

    DNS Server (Primary)

    Sets the IP address for a Primary DNS server. You can enter up to 15 characters.

    DNS Server (Secondary)

    Sets the IP address for a Secondary DNS server. You can enter up to 15 characters.

    WINS Server (Primary)

    Sets the name or the IP address for the WINS server. You can enter up to 15 characters.

    WINS Server (Secondary)

    Sets the name or the IP address for the WINS server. You can enter up to 15 characters.

    E-mail Setting

    Mail Server Address

    Sets the IP address or host name for the SMTP server. You can enter up to 64 characters.

    Set Sender's Address (From)

    Sets an e-mail address for this machine.

    Receive Setting

    Sets the protocol to be used for receiving e-mails.

    Authentication Method

    Sets the authentication method.

    SMTP User ID

    Sets the login ID to the server used for SMTP authentication. You can enter up to 64 characters.

    SMTP Password

    Sets the password to the server used for SMTP authentication. You can enter up to 64 characters.

    POP3 Server

    Sets the IP address or host name for the POP3 server. You can enter up to 64 characters.

    POP User ID

    Sets the login ID to the server used for POP authentication. You can enter up to 64 characters.

    POP Password

    Sets the password to the server used for POP authentication. You can enter up to 16 characters.

    Test

    Sends a test mail to the Mail Server.

    You can check if communication between your machine and the mail server works normally.

    Test Print

    Performing test printing allows you to check if the consumables and paper are properly set.
