Names and Functions of Screen Items for Copy
This section describes the items of the screens.

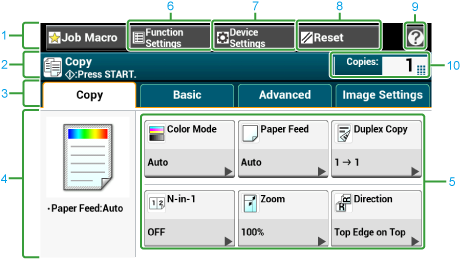

[Copy] Tab
|
|
Item |
Description |
|---|---|---|
|
1 |
Stationary button area |
Displays buttons that appear on the screen at all times. |
|
2 |
Title and operation guide area |
Displays the title of the current screen and provides guide for possible operations. |
|
3 |
Tab labels |
Displays labels for tabs. Press a label to switch between tabs. |
|
4 |
Main area |
Displays a preview of copy output that will be produced with the current settings. |
|
5 |
Shortcut buttons |
Displays shortcut buttons for using certain copy functions. The screen image shows the factory default setting. Shortcut buttons on the screen can be customized to fit your needs. Refer to How to Customize the Touch Panel. |
|
6 |
Function Settings |
Displays the current settings. The setting can be changed for certain functions. |
|
7 |
Device Settings |
Specifies various settings such as Administrator Setting. |
|
8 |
Reset |
Returns the settings for the current copy job to their default settings. |
|
9 |
|
Displays Help topics. |
|
10 |
Copies |
Specifies the number of copies to make. |

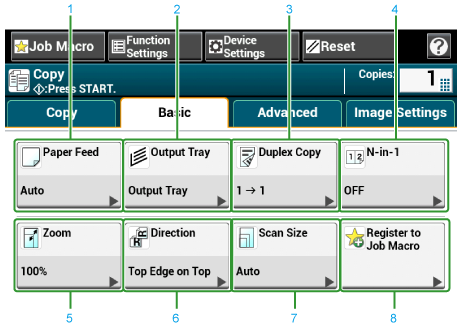

[Basic] Tab
|
|
Item |
Description |
|---|---|---|
|
1 |
Paper Feed |
Specifies the tray to set the copy paper. |
|
2 |
Output Tray |
Specifies the output tray. |
|
3 |
Duplex Copy |
Makes copies on both sides of paper. |
|
4 |
N-in-1 |
Combines multiple pages on one sheet of paper. |
|
5 |
Zoom |
Specifies the zoom rate for making enlarged or reduced copies. |
|
6 |
Direction |
Specifies the orientation according to the document, TopEdgeOnTop or TopEdgeOnLeft. |
|
7 |
Scan Size |
Specifies the scan size according to the size of the document. |
|
8 |
Register to Job Macro |
Registers current settings to Job Macro. |

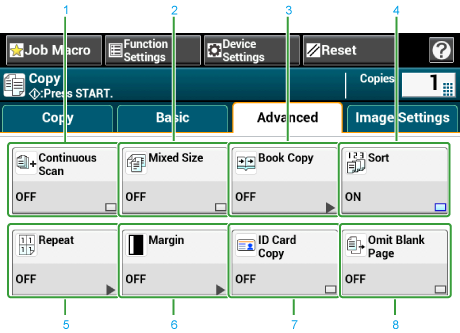

[Advanced] Tab
|
|
Item |
Description |
|---|---|---|
|
1 |
Continuous Scan |
Scans multiple sets of documents as a single copy job. |
|
2 |
Mixed Size |
Scans multiple documents having the same width but different lengths in the ADF, so that they can be copied on their respective paper sizes. |
|
3 |
Book Copy |
Copies two-spread pages of bound documents onto separate sheets of paper. |
|
4 |
Sort |
Sorts multiple sets of copies in the same page order as the document. |
|
5 |
Repeat |
Repeatedly copies the same document on one side of a sheet of paper (two or four times). |
|
6 |
Margin |
Specifies top, bottom, right, or left margin on printed copy. |
|
7 |
ID Card Copy |
Copies both sides of an ID card, such as a driver's license, on one side of a sheet of paper. |
|
8 |
White page skip |
Skips blank page when copying. |

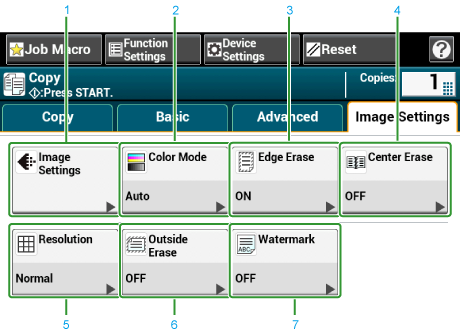

[Image Settings] Tab
|
|
Item |
Description |
|---|---|---|
|
1 |
Image Settings |
Specifies the following image settings: Document Type, Background Removal, Density, Contrast, Hue, Saturation, and RGB. |
|
2 |
Color Mode |
Specifies color mode to copy a document. |
|
3 |
Edge Erase |
Eliminates a black shadow that may appear around the edges on the scanned image when scanning, for example, a book. |
|
4 |
Center Erase |
Eliminates shadow lines when scanning a book or magazine. |
|
5 |
Resolution |
Specifies the resolution to scan a document. |
|
6 |
Outside Erase |
Eliminates shadow lines outside of document when scanning a book or magazine. |
|
7 |
Watermark |
Stamps text when copying. |

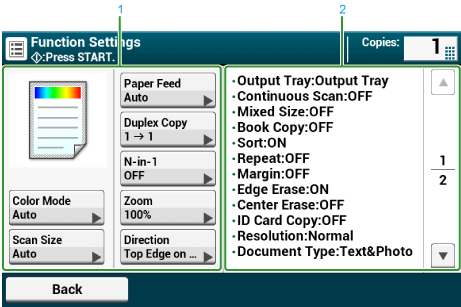

[Function Settings] Screen
|
|
Item |
Description |
|---|---|---|
|
1 |
Setting display area 1 |
Displays the current settings for displayed items. |
|
2 |
Setting display area 2 |
Displays a list of settings that are not displayed in the setting display area 1. |
