Copying Different Size Documents (Mixed Size)

You can set multiple documents having the same width but different lengths in the ADF so that they can be copied on their respective paper sizes.

Note

  • You can use this mixed-size function only for the following combinations.

  • Specify the size of the larger document for the document size.

Small Size

Large Size

Remarks

A4 Landscape

A3

A4 Portrait

Folio

A5 Landscape

A4 Portrait

*

B5 Landscape

B4

*

Letter Portrait

Legal13

Letter Portrait

Legal13.5

Letter Portrait

Legal14

Letter Landscape

Tabloid

Statement Landscape

Letter Portrait

*

* Available only one-sided scanning and one-sided printing.

  • If [Mixed Size] is enabled, [Paper Feed] cannot be selected. The paper tray that matches the document is automatically selected to feed the paper.

  • [Mixed Size] is available only if [Zoom] is set to [98% Fit to page] or [100%].

  • You cannot set [Edge Erase] and [Mixed Size] at the same time.

  • To use multiple sheets of paper, press [Device Settings], and then select [Paper Setup] > [Select Tray] > [Copy] to enable [MP tray].

  • When you use the MP tray, load paper in the MP tray, and then display the [Mixed Size] menu.

Memo

This section covers an example of A3 loaded in Tray 1 and A4 Landscape loaded in the MP tray.

  1. Load A3 paper in Tray 1, and then load A4 Landscape paper in the MP tray.

  2. Set the paper size dial of the Tray 1 to [A3].

    Memo

    You can use only standard paper for this function.

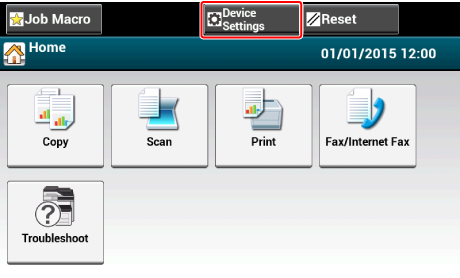

  3. Press [Device Settings].

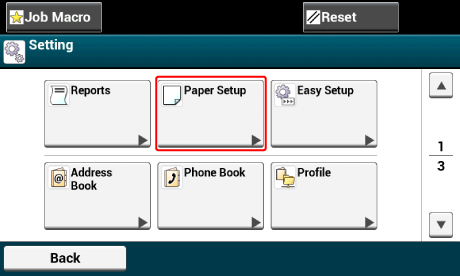

  4. Press [Paper Setup].

  5. Press [MP tray] and [Paper Size] in order, and then select [A4].

  6. Press [Back] until the home screen is displayed.

  7. Press [Copy] or the (COPY) button.

  8. Set a document that is mixed with A4 and A3 sizes in the ADF.

    Loading Paper

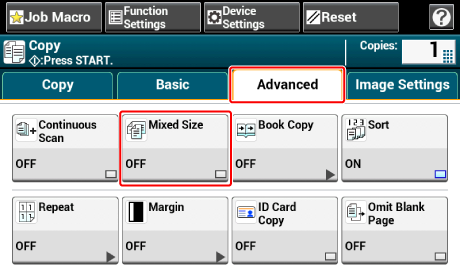

  9. Press [Mixed Size] on the [Advanced] tab.

    [Mixed Size] is set to [ON].

    Memo

    Pressing [Mixed Size] switches between [ON] and [OFF].

  10. Check that the following settings are displayed on the copy start screen.

    • [Mixed Size]: ON

    • [Paper Feed]: Auto

    • [Zoom]: 100%

    • [Scan size]: Auto

  11. Enter the number of copies by using the numeric keypad if necessary.

  12. Press the (START) button.

Note

When using the Mixed Size function, be careful about the binding position of duplex documents.

When copying mixed-size duplex documents, specify the binding position for the bigger documents and bind smaller documents in the same direction as the bigger ones. (Their binding positions may not be the same.)

  • Example 1: For A3/A4 Landscape

    • For A3 documents with long-edge binding, set A4 Landscape documents with short-edge binding. (When loading in the ADF, set the documents so that their binding positions align to the top or bottom of the ADF.)

    • For A3 documents with short-edge binding, set A4 Landscape documents with long-edge binding. (When loading in the ADF, set the documents so that their binding positions align to the left or right of the ADF.)

  • Example 2: For Legal/Letter Portrait

    • For Legal documents with long-edge binding, set Letter Portrait documents with long-edge binding. (When loading in the ADF, set the documents so that their binding positions align to the top or bottom of the ADF.)

    • For Legal documents with short-edge binding, set Letter Portrait documents with short-edge binding. (When loading in the ADF, set the documents so that their binding positions align to the left or right of the ADF.)
