Installing the Wireless LAN module (ES5162LP MFP only)

Install the wireless LAN module when you want to use a wireless connection.

After installing, be sure to change the wireless LAN setting from [DISABLE] to [ENABLE] on the operator panel.

  1. Check that the machine is turned off and power cord and all the cables are unplugged.

    Note

    Installing the wireless LAN module with the machine turned on may cause the machine and wireless LAN module to malfunction.

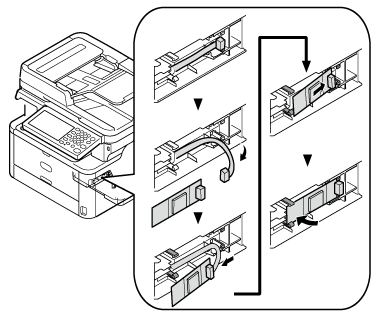

  2. Open the wireless LAN module cover.

  3. Connect the connector of the connection cable to the wireless LAN module, and then install the module to the printer.

  4. Close the wireless LAN module cover.

    Go to "Connecting the Power Code”.
