Sending a Fax to a Destination Confidential Box (Fcode Transmission)

You can perform Fcode confidential transmission by entering the sub address that is registered to an Fcode confidential box of the recipient's machine. Check the destination sub address before sending.

  1. Press [Fax/Internet Fax] or the (FAX) button.

    The fax/Internet fax top screen appears.

  2. Set a document in the ADF or on the document glass.

  3. Press [Fax].

  4. Press [Communicating Function] on the [Advanced] tab.

  5. Press [Fcode Tx].

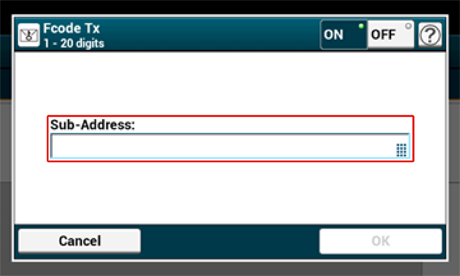

  6. Enter the sub address of the box that is registered to the recipient's machine.

    The sub address is up to 20 characters in length.

  7. Press [OK].

  8. Press [Back].

  9. Change other settings if necessary, and then press the (START) button.
