OKI Launches Two Types of Environment-Proof FPC (Flexible Printed Circuits) for Use in High-Temperature, High-Pressure Steam Environments

Capable of being used in 200℃ high-temperature environments and equipment requiring high-pressure steam sterilization

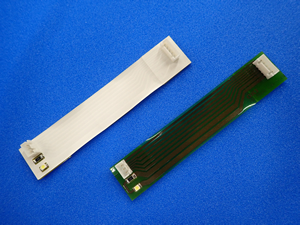

High-pressure steam-proof FPC (left)
and heat-proof FPC (right)

TOKYO, June 12, 2023 -- OKI Electric Cable (President: Hideo Yamaguchi, Head office: Kawasaki, Kanagawa Prefecture), the OKI Group's electric cable company, has developed two new types of environment-proof FPC (flexible printed circuit) products (*1) capable of use under harsh conditions, including the conditions found in high-temperature and high-pressure steam environments: a heat-proof FPC and a high-pressure steam-proof FPC. Global sales will commence in June for applications involving equipment and devices that require high-temperature heat treatment or high-pressure steam sterilization. Sales of at least JPY100 million are expected for this fiscal year.

FPCs are flexible printed circuit boards that use plastic film as substrates. Compared to rigid conventional circuit boards (*2), they are extremely thin and highly flexible. They can be bent freely, allowing use in narrow spaces in electronic devices; in three-dimensional configurations; and in moving parts subject to repeated bending. Components are mounted on FPCs in the same way as on rigid circuit boards, making the technology key to reducing the size and weight of electronic devices and creating a broad range of applications across industries. FPCs are found in both everyday electronic devices and in industrial electronic equipment.

Demand for FPCs has grown in recent years for use in semiconductor manufacturing equipment involving heat treatment at temperatures of around 200℃ and medical equipment requiring high-pressure steam sterilization. These conditions demand the capacity to withstand harsh environments. Exposing conventional FPCs to temperatures of 80℃ or above or to humid and high-pressure steam environments degrades adhesives in the insulating layers protecting circuit boards, resulting in peeling of the insulation layer and other defects.

The newly developed heat-proof FPC applies OKI Cable's proprietary surface treatment to copper foil to improve adhesion to the insulating layer. In addition to this proprietary surface treatment, the high-pressure steam-proof FPC incorporates silicone resin into the insulating layer to improve resistance to high-pressure steam. This maintains insulation layer adhesion even after exposure to high-temperature heat treatment at 200℃ for 1,000 hours (for the heat-proof FPC) and after high-pressure steam treatment at 132℃ and 0.2 MPa (*3) for 15 minutes × 250 cycles (for the high-pressure steam-proof FPC). Insulation resistance and other electrical characteristics meet all the requirements specified by the applicable standard (JPCA-UB01: (*4)).

"The features of FPCs can enable wiring for applications and in devices where FPCs previously could not be used due to operating environment restrictions. We believe the greater freedom in equipment design provided by these characteristics will lead to devices with ever greater functionality," commented Hideo Yamaguchi, President of OKI Electric Cable.

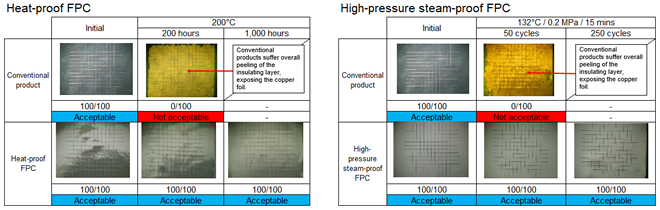

Insulating layer adhesion (solder resist and symbol mark coating adhesion: JPCA-UB01)

Electrical characteristics (insulation resistance: JPCA-UB01)

Target Treatment conditions Criteria Result Acceptability
Heat-proof FPC 200℃ × 1000 hours ≧ 500 MΩ 1.0 × 107 Yes
High-pressure steam-proof FPC 132℃/0.2 MPa/15 mins×250 cycles 1.1 × 106 Yes

Explanation of terminology

  • *1 :Flexible printed circuits (FPC)

    Also referred to as flexible printed circuit boards or flexible printed wiring boards; printed circuit boards with electrical circuits formed on a substrate by laminating conductive metal such as copper foil to a thin, soft insulating base film (such as polyimide).

  • *2 :Rigid circuit boards

    Hard printed circuit boards based on glass or paper impregnated with epoxy resin. The most prevalent type used due to their relatively simple structure, ease of handling even with surface-mounted components, and low cost.

  • *3 :MPa (megapascal)

    A unit of pressure; one MPa corresponds to the pressure imposed by to a load of approximately 10.2 kg acting on an area measuring one square centimeter.

  • *4 :JPCA-UB01

    A standard for electronic circuit boards, published by the Japan Electronics Packaging and Circuits Association.
