For TWAIN Applications

This section describes how to start scanning from a TWAIN application (Adobe Photoshop, etc.) installed on a computer.

The procedure when scanning with Adobe Photoshop on a computer connected via a USB cable to the machine is used as an example.

Scanning

  1. Set a document in the ADF or on the document glass.

  2. Set the scan mode on the touch panel.

    For details, refer to "Setting PC Scan mode" in "Changing the Machine Settings"

  3. Start Adobe Photoshop on the computer.

  4. Click [Import] from [File], and then select the scanner driver of the machine.

  5. Click [Scan].

  6. Select [Simple] or [Advanced] from [Mode].

  7. Change the setting if necessary. If [Simple] is selected, click [Settings] and change the settings for the scan button.

  8. Click a scan button.

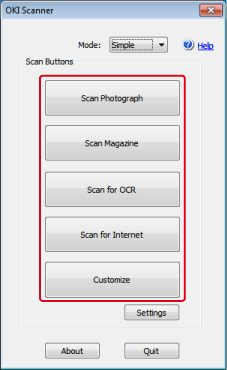

    The screen image shows the setting screen when [Simple] is selected.

  9. Click [Quit].

  10. If you do not scan other pages or the back side, click [Quit].

    Memo

    The five buttons ([Scan Photograph], [Scan Magazine], [Scan for OCR], [Scan for Internet], [Customize]) are registered as the default settings.
