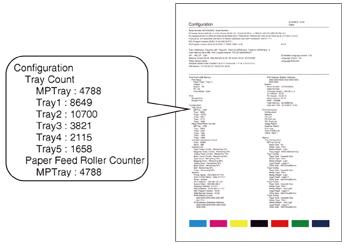

Check that you can print with the printer. Check the detailed settings and status of your printer by printing the contents of the settings (Configuration).
Memo
-
If you purchased optional equipment such as the additional tray unit, check the printer after mounting the optional equipment. For details on attaching optional equipment, see "Options".
Note
-
When a printer is in the power saving mode, press the «POWER SAVE» button to restore from the mode.
-

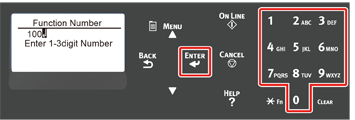

Press the «Fn» key on the operator panel.
-
Enter «1», «0», «0» using the numeric keypad, check [100] is displayed on the display screen, and press the «ENTER» button.
-
Press the «ENTER» button as [Execute] is selected.
After finishing a print of printer settings, a setup for printing from a printer completes.
Memo
-
You can also print reports and lists for each function. Refer to "Checking the Current Settings".
-
When optional equipment is mounted
After mounting an optional equipment, check the printer settings in the same manner and check if the mounted optional equipment is properly displayed on the printing result.
