Mac PCL Printer Driver (C824 Only)

1

Pages per Sheet

Selects the number of copies to be printed.

2

Layout Direction

Selects the layout when printing multiple pages on one sheet of paper.

3

Border

Selects the border when printing multiple pages on one sheet of paper.

4

Two-Sided

Selects this option for duplex printing.

5

Reverse page orientation

Selects this option when you want to reverse the page orientation.

6

Flip horizontally

Selects this option when you want to flip the pages horizontally.

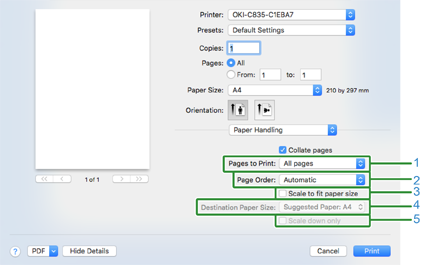

1

Pages to Print

Selects the pages to be printed.

2

Page Order

Selects the order of the pages to be printed.

3

Scale to fit paper size

Selects this option when printing to fit the paper size.

Depending on the setting, the print image may not be printed correctly.

4

Destination Paper Size

Selects this option when you want to enlarge or reduce the image size to fit output paper size.

5

Scale down only

Selects this option when you want to reduce the image size to fit output paper size.

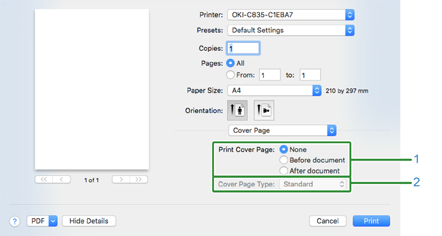

1

Print Cover Page

Sets the cover printing.

2

Cover Page Type

Sets the character string for cover printing.

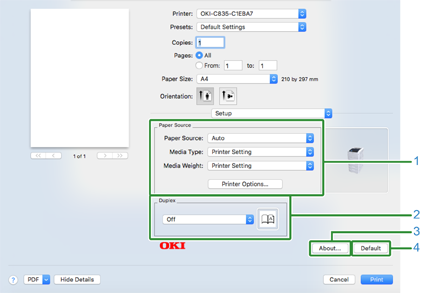

1

Paper Source

Specifies the paper feed, type, weight, or other settings.

2

Specifies this setting when you want to perform duplex printing.

3

About

Displays the version of the printer driver.

4

Resets the settings on the tab to their default settings.

1

Print Quality

Controls the print resolution.

2

Set it when printing more vivid photos.

3

Sets if white or colored stripes appear between overlaid objects.

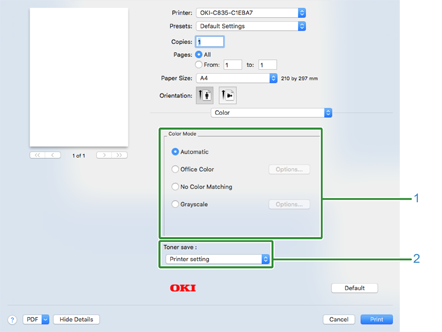

1

Color Mode

Specifies alignment to color mode when printing in color.

2

Toner save

Specifies the toner saving.

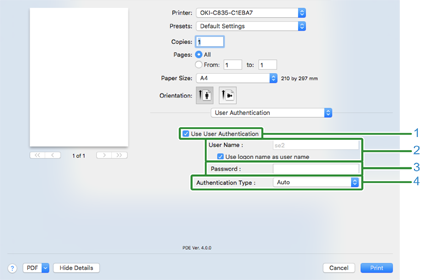

1

Use User Authentication

Select this check box if you set user authentication when printing.

2

User Name

The user name for user authentication.

3

Password

The password for user authentication.

4

Authentication Type

Specify an authentication type to be used.

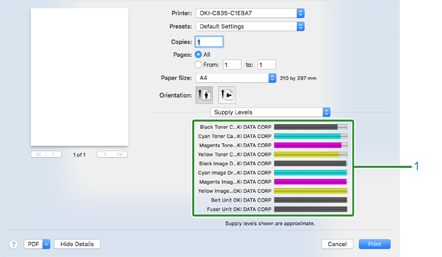

1

Consumables

Displays the usage status of consumables.
