For K (black) Toner Cartridge Only

Memo

  1. Prepare a new [K] toner cartridge.

  2. Insert your finger into the recess on the right side of the machine and pull the front cover open lever (1) to open the front cover (2) forward.

  3. Turn the toner cartridge lock lever (blue) (3) of the toner cartridge toward you until its top aligns on the mark to detach the toner cartridge from the image drum.

  4. Lift the toner cartridge (4) from the right side, and remove it from the machine.

    Burns may result.

    Never throw used toner cartridges into a fire. They may explode, and the toner inside may fly off and cause burns.

    Note

    • When toner powder drops to the paper feeding area inside the machine, wipe it off with a wet cloth that has been well wrung.

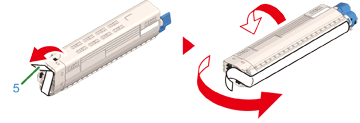

  5. Unpack a new toner cartridge, and shake the cartridge several times vertically and horizontally.

  6. Remove the tape (5) from the toner cartridge.

  7. Insert a new toner cartridge (6) by aligning its left side indentation (7) with the protrusion (8) on the image drum so the toner cartridge and image drum [K] color label align. Then insert the right side gently into place.

    Note

    • Make sure to take off the tape from the toner cartridge before setting. Peel off the tape before setting the new cartridge.

  8. While pressing the toner cartridge, turn the toner cartridge lock lever (blue) (3) backward until its to aligns on the mark, and lock the toner cartridge to the image drum.

    You will hear a click when it is locked in place.

    Note

    • Closing the cover without turning the toner cartridge lock lever (blue) may cause a malfunction. Make sure to turn the cartridge lock lever until it lines up with the in the far end.

  9. Close the front cover (2).

    Note

    • The front cover cannot be closed if the output tray is not closed securely.

  10. Please recycle toner cartridges.

    Memo

    • If you have to dispose of used toner cartridges, put them into polyethylene bags or other container, and be sure to follow the regulations or instructions of your local government.
