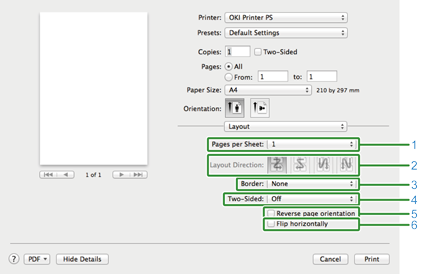

[Layout] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Pages per Sheet |
Selects the number of pages that is printed on a sheet of paper. |
|
2 |
Layout Direction |
Specifies the layout that is applied when printing multiple pages on a sheet of paper. |
|
3 |
Border |
Specifies a type of a boundary. |
|
4 |
Two-Sided |
Specifies when performing duplex printing. |
|
5 |
Reverse page orientation |
Reverses the direction of a page to print by selecting this check box. |
|
6 |
Flip horizontally |
Flips left and right to print by selecting this check box. |

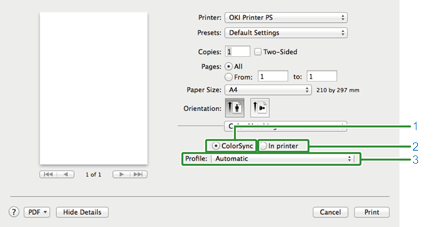

[Color Matching] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
ColorSync |
Specifies the ColorSync function. |
|
2 |
In printer |
Performs color matching with this machine. |
|
3 |
Profile |
Specifies a profile. |

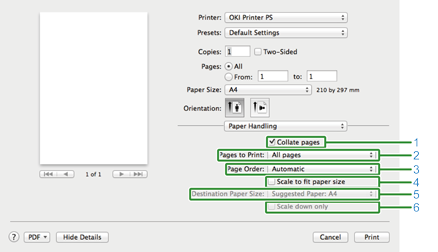

[Paper Handling] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Collate pages |
Prints in units of copies by selecting this check box. |
|
2 |
Pages to Print |
Specifies pages to print. |
|
3 |
Page Order |
Specifies a page order to print. |
|
4 |
Scale to fit paper size |
Prints to fit a paper size. Enlarges or reduces to fit the output paper size. Enlarges or reduces a document to fit the output paper size by selecting this check box. |
|
5 |
Destination Paper Size |
Selects the output paper size when the [Scale to fit paper size] check box is selected. |
|
6 |
Scale down only |
Only reduces a document to fit the output paper size by selecting this check box. |

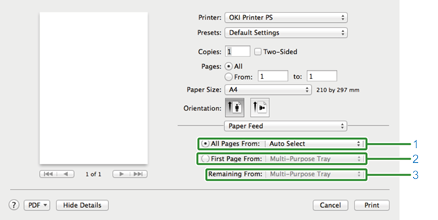

[Paper Feed] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
All Pages From |
Specifies the paper feed tray. If you specify [Auto Select], a tray is automatically selected. |
|
2 |
First Page From |
Select this setting to print only the first page from the specified tray. |
|
3 |
Remaining From |
Select this setting to print the remaining pages from the specified tray. |

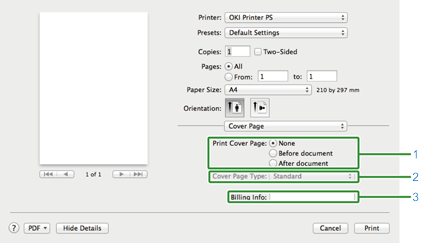

[Cover Page] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Print Cover Page |
Specifies the cover printing. |
|
2 |
Cover Page Type |
Specifies a string when printing the cover. |
|
3 |
Billing Info |
This function is not available. |

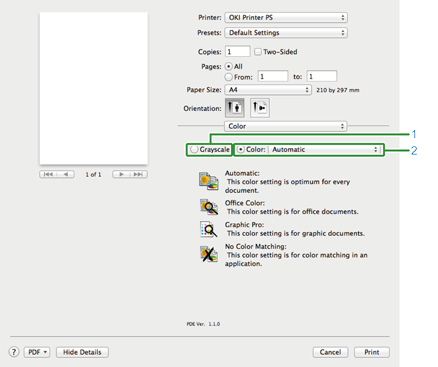

[Color] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Grayscale |
Specifies to use monochrome printing. |
|
2 |
Color |
Specifies alignment to color mode when printing in color. |

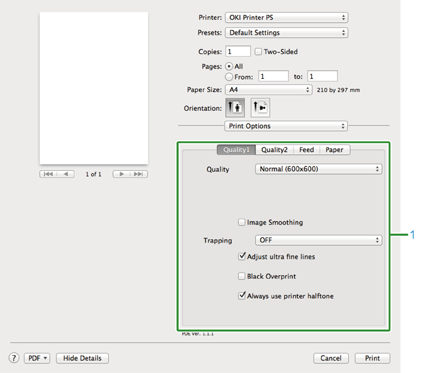

[Print Options] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Quality1, Quality2, Feed, Paper |
Specifies the print quality, toner saving, paper type, etc. |

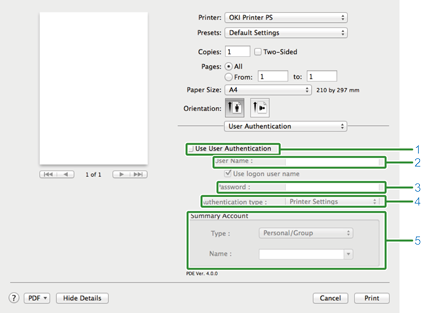

[User Authentication] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Use User Authentication |
Select this check box if you set user authentication when printing. |
|
2 |
User Name |
The user name for user authentication. |
|
3 |
Password |
The password for user authentication. |
|
4 |
Authentication type |
Specify an authentication type to be used. |
|
5 |
Summary Account |
Specify an account name and type. |
Memo
[Authentication type], [Summary Account] can be enabled from the apple menu, select [System Preferences] > [Printers & Scanners], select the device and enable the device in the [Options] tab of [Options & Supplies].

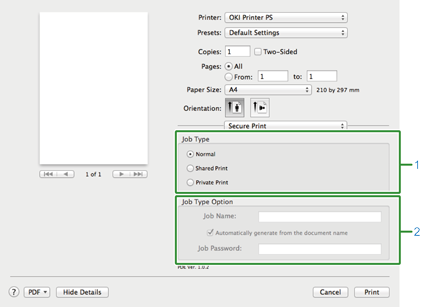

[Secure Print] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Job Type |
Specifies the job type. [Job Type Option] can be used if [Shared Print] or [Private Print] is selected. |
|
2 |
Job Type Option |
Specify a job name to be displayed on the operator panel and password required when printing. |
[Supply Levels] Panel
|
|
Item |
Description |
|---|---|---|
|
1 |
Consumables |
Displays the remaining amount of consumables. |
Memo
The [Supply Levels] panel may not appear depending on the environment such as how to connect to the device.
