Connecting a USB Cable

A USB cable (Hi-Speed USB 2.0) is not supplied.

  1. Prepare a USB cable.

    Memo

    If you want to connect in USB 2.0 Hi-Speed mode, use a Hi-Speed USB 2.0 USB cable.

  2. Check that the machine and computer are turned off.

  3. Open the interface cover on the back side of the machine pressing the center part of it.

  4. Insert one end of the USB cable into the USB interface connector on the machine.

    Note

    Do not insert the USB cable into the network interface connector. It may cause a malfunction.

  5. Pass the USB cable under the tab, and then close the interface cover.

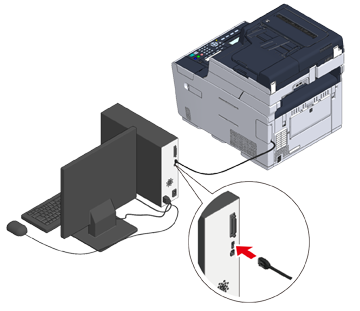

  6. Insert the other end of the USB cable into the USB interface connector on the computer.

    Note

    For Windows, do not insert the other end of the USB cable into the computer until the instruction is displayed on the screen when the driver installation is in progress.

    Go to the procedure to "Loading Paper in the Tray".
