Loading Paper in Tray 1/2/3

The procedure when loading paper in Tray 1 is used as an example, and the same procedure applies to Tray 2/3 (optional).

  1. Pull the paper cassette out.

  2. Slide the paper guide (a) to the width of paper to be loaded.

  3. Slide the paper stopper (b) to the length of paper to be loaded.

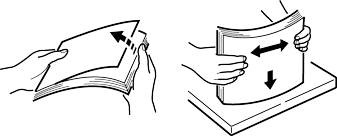

  4. Fan a stack of paper well, and then align the edges of the paper.

  5. Load paper with the print side face down.

    Note

    Do not load paper above the "" mark on the paper guide.

  6. Secure the loaded paper with the paper guide.

  7. Push the paper cassette until it stops.

  8. Press the (SETTING) button on the operator panel.

  9. Press [Paper Setup].

  10. Press the tray in which paper is loaded.

  11. Set [Paper Size], [Media Type], and [Media Weight].

  12. Press [Back] until the home screen is displayed.
