Registering a Fax Number (Configuration Tool)

If you use the Speed Dial Manager, you can register and edit a destination speed dial.

You can register up to 1000 destinations to speed dial.

  1. Click [Start], and then select [All Programs] > [Okidata] > [Configuration Tool] > [Configuration Tool].

  2. Select the machine from [Registered Device Table].

  3. Select the [User Setting] tab.

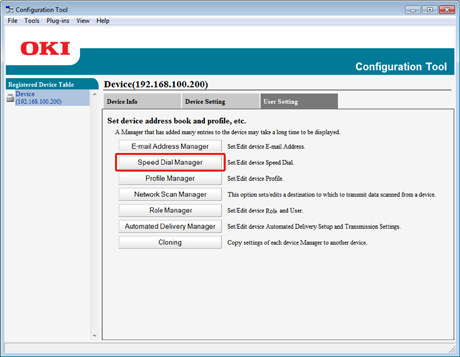

  4. Click [Speed Dial Manager].

  5. Enter the administrator password, and then click [OK].

    The factory default password is "999999".

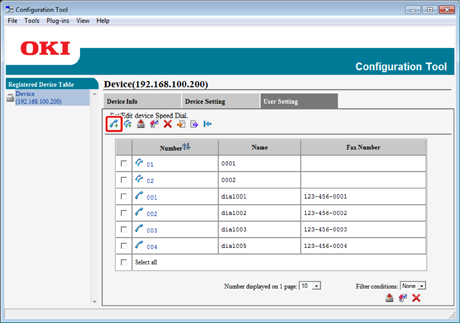

  6. Click (New(Speed Dial)).

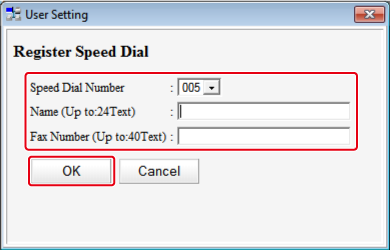

  7. Enter a fax number, and then click [OK].

  8. Click (Save to device).
