If the Error Code is "409"

  1. Close the rear output tray (b).

  2. Hold the handle (B) and open the scanner unit (c) completely.

  3. Press the button (A) and open the output tray (d) completely.

    Burns may result.

    The fuser unit is extremely hot. Do not touch it.

  4. Remove the four image drums from the machine and place the image drums on a flat surface.

    Note

    While removing consumables, be careful not to hit them to the LED head.

  5. Cover the removed image drums with paper so that the image drums are not exposed to light.

  6. Remove the jammed paper slowly by pulling the edge of paper.

  7. If paper jams in the fuser unit, press the jam release lever (e) on the fuser unit and slowly pull the jammed paper toward you.

  8. Tilt the lock levers (f) on the both sides of the fuser unit toward you.

  9. Hold the fuser unit handle and lift the fuser unit out of the machine.

    Note

    While removing the fuser unit, be careful not to hit it to the LED head.

  10. Turn the lock levers (g) on the both sides of the belt unit toward you and remove the belt unit by holding the lock levers.

  11. Remove the jammed paper slowly by pulling the edge of paper.

  12. Hold the lock levers of belt unit and place the belt unit into the machine.

  13. Turn the lock levers (g) on the both sides of the belt unit forward.

  14. Hold the fuser unit handle and place the fuser unit into the machine.

    Note

    While setting the fuser unit, be careful not to hit it to the LED head.

  15. Tilt the lock levers (f) on the both sides of the fuser unit.

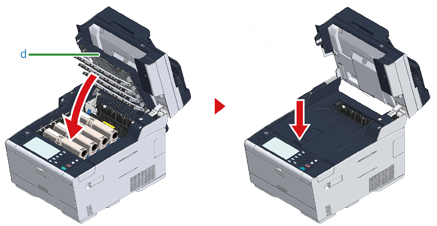

  16. Put all four image drums back into the machine.

    Note

    While setting consumables, be careful not to hit them to the LED head.

  17. Close the output tray (d) slowly and push the center of the output tray for confirmation.

  18. Hold the handle (B) to close the scanner unit (c).

    Note

    Do not close the scanner unit vigorously. It may cause the document feed roller of ADF to fall and get in the way of loading documents.

    If the document feed roller of ADF has fallen, open and close the ADF cover.
