Correcting Color Registration Error Manually

The machine automatically adjusts color registration when the machine turns on or the output tray is opened and closed. You can also manually adjust color registration from the operation panel if necessary.

  1. Press [Device Settings] on the touch panel.

  2. Press or several times and press [Admin Setup].

  3. Enter the administrator name and password and press [OK].

    The factory default administrator name and password are "admin" and "999999" respectively.

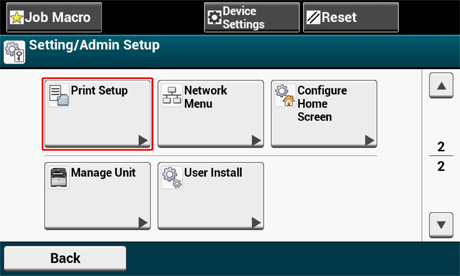

  4. Press or several times and press [Print Setup].

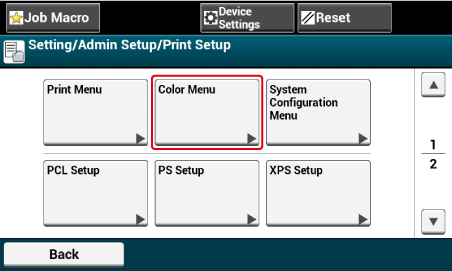

  5. Press [Color Menu].

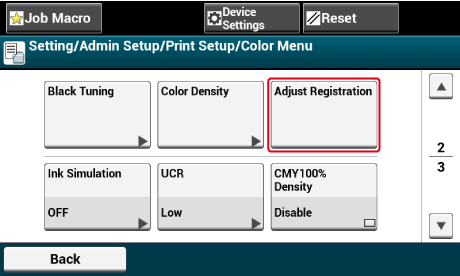

  6. Press or several times and press [Adjust Registration].

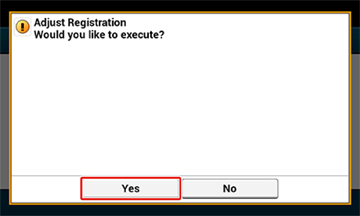

  7. Press [Yes].
