Installing Software

Install the utility you want to use by following the procedure below.

Install utility software by using the Software DVD-ROM.

  • PCL6 Printer Driver

  • PS Printer Driver

  • XPS Printer Driver

  • OKI LPR Utility

  • Color Correct Utility

  • Color Swatch Utility

  • PS Gamma Adjuster Utility

  • Configuration Tool

  • PDF Print Direct

  • Print Job Accounting Client

Connect the machine to a computer via a network or USB interface.

Note

Check the status of this machine before installing.

  • This machine is turned on.

  • This machine is connected to a network with a network cable and the IP address or other settings are set.

  1. Insert the "Software DVD-ROM" into a computer.

  2. When [AutoPlay] is displayed, click [Run Setup.exe].

    Memo

    If the [User Account Control] dialog is displayed, click [Yes].

  3. Select a language from the drop-down list.

  4. Read the license agreement, and then click [Accept].

  5. Read Environmental advice for Users and click [Next].

  6. Select [Network] or [USB] corresponding to your connection environment, and then click [Next].

    If the [Windows Security Alert] dialog is displayed, click [Allow access].

  7. Select the model name of this machine, and then click [Next].

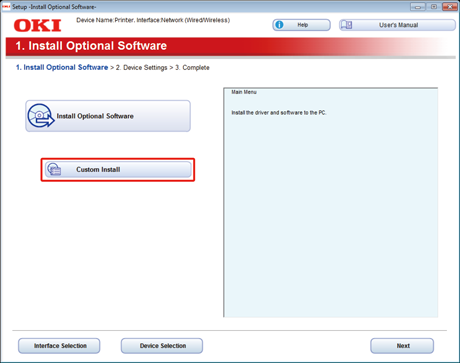

  8. Click [Custom Install].

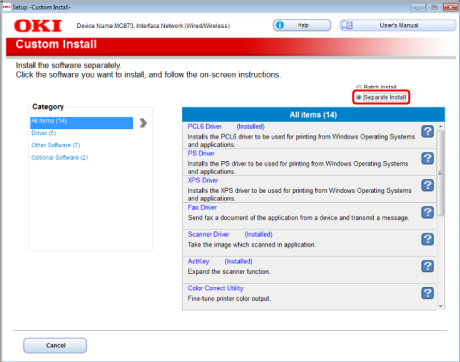

  9. Click [Separate Install].

  10. Click a driver or software to install.

    Installation starts.

    Memo

    The procedure below varies depending on the selected software.

    The installation of the Configuration Tool is used as an example.

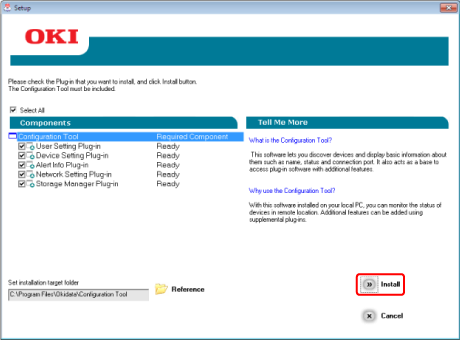

  11. Select plug-ins you want to install and click [Install].

    Install starts.

  12. When installation is complete, click [Close].

You can copy a utility by dragging to any location. You can also run a utility directly from the "Software DVD-ROM".

  1. Insert the included "Software DVD-ROM" into a computer.

  2. From [OKI] > double-click the [Utilities] folder.

  3. Copy the folder of a utility to install by dragging to any location.

Memo

To start utility software, double-click the software icon in the folder.
